1. GTX IP核的创建

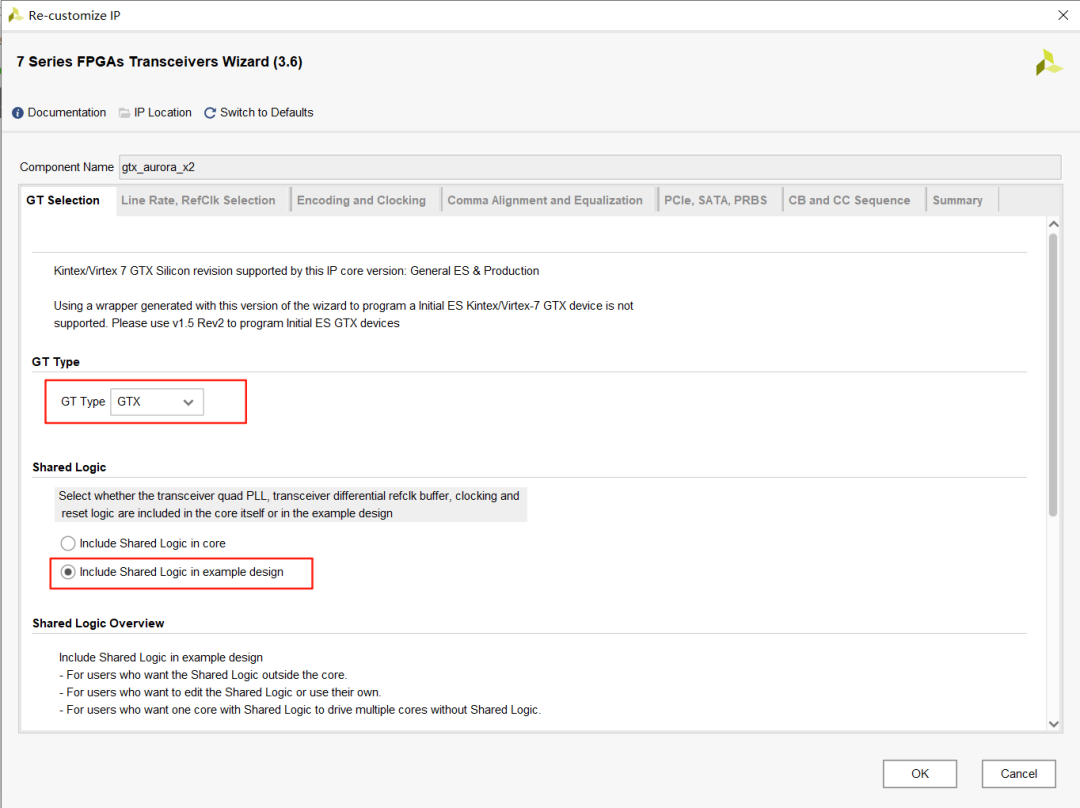

此选项根据你所用的FPGA型号确定GT类型，我所用的是7k325t系列，故GT类型为GTX
接下来，开始配置IP

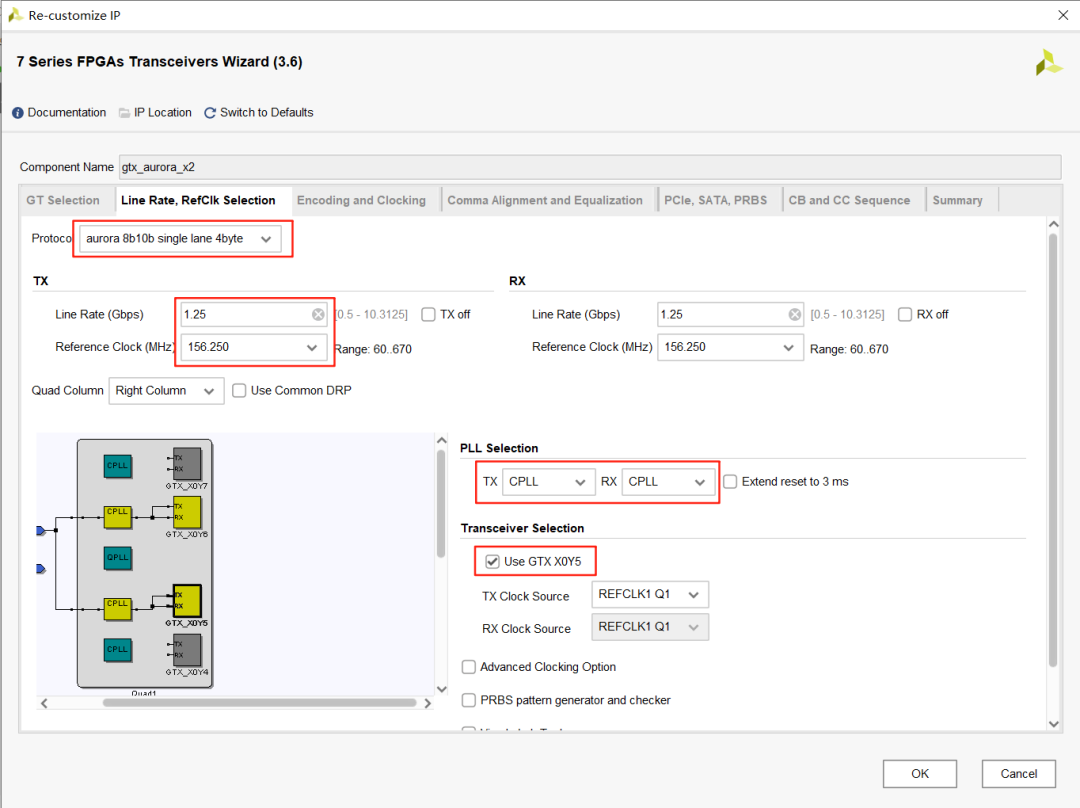

首先，这里的时钟频率是连接FPGA高速bank上的差分时钟，根据自己项目实际需求进行配置即可
再者，强调一下，因为我的项目中对应的是光纤收发，线速率根据实际光口的不同进行适配选择即可！
还有，估计有和我当时一样的初学者看本篇文章，所以我就本着我当时初学时复杂且全是问号？的心情补充一下。开始废话（高手跳过）：我这里是两个高速收发器，亦就是两路光纤收发，怎么来的呢，当然是选的，怎么选的呢，好问题，用你的鼠标选中左侧灰色的收发器框图，然后点击选择我用小红框标记的选项“Use GTX X0Y6”，然后框图从灰色变成黄色了，这个时候神奇的事情就发生了，艾~突然就又增加了一个，聪明的你就以此类推了，哈哈哈哈，这个框图你得对照你项目中实际原理图看仔细，你用的高速收发器是在哪个FPGAbank上的哪个坐标就行，不过也没关系，就算这里你选错了，到时候你约束引脚约束对了就可以了，不影响的。
好了，接着选

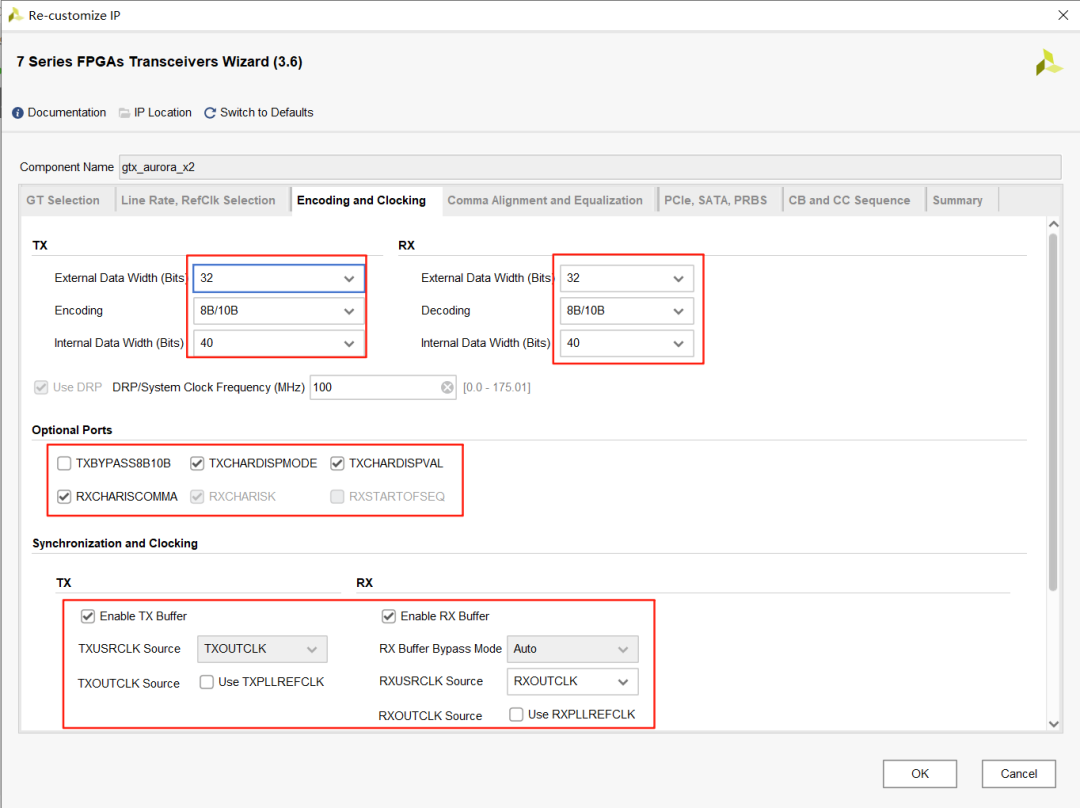

这里就开始配置收发器了，外部数据宽度，也就是咱们逻辑里面最终要用到的数据位宽，这里我用的是32位，根据你项目需求用就行了，就算其他位宽的，你用异步fifo转不就行了，这能难倒咱们逻辑工程师吗？开玩笑呢！好，编码一般8B/10B，内部数据位宽就得注意了，这个地方还与最终咱们使用的userclk有关，在ug476手册里面第100页有具体讲解（广子：上xianyu搜麻酱就烧饼，获取xilinx全系列文档手册），可以自己查查，我就简单赘述两句: TXUSRCLK Rate=Line Rate/Internal Datapath Width,如果这里你的内部位宽是20的时候，你最终的TXUSERCLK2=TXUSERCLK/2，具体细节深耕数据手册！
然后就是本页其他配置都是默认的，不用管（如果有特殊需求除外）

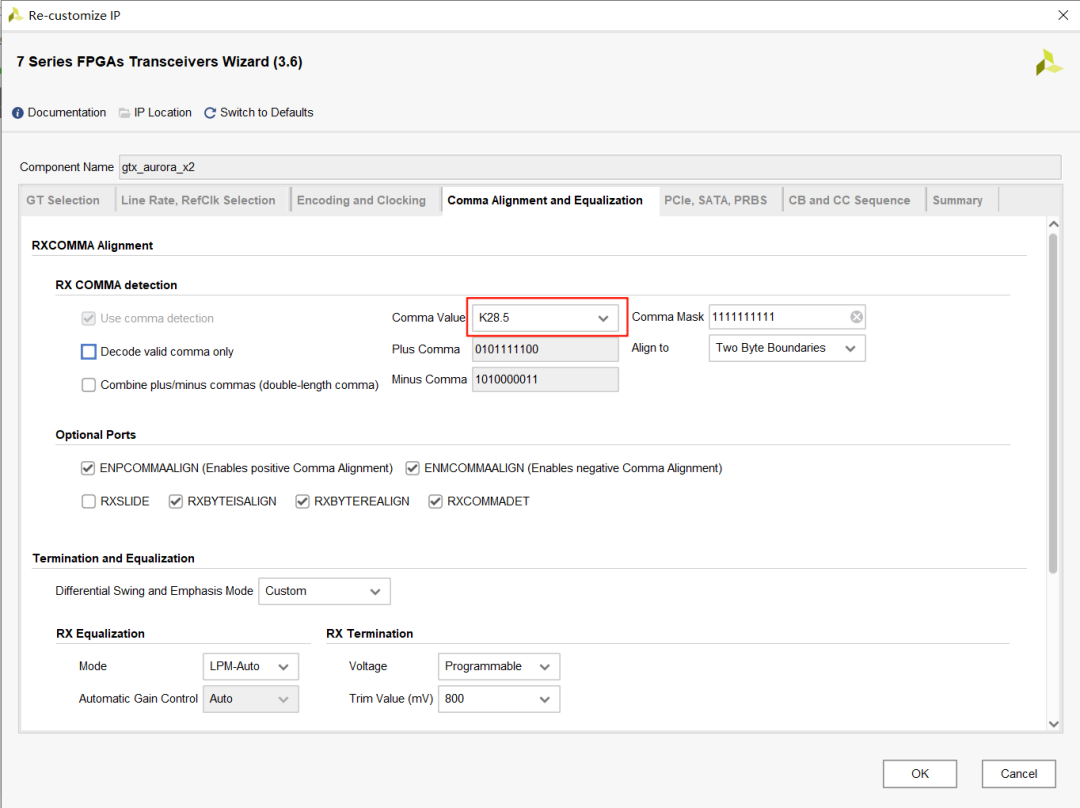

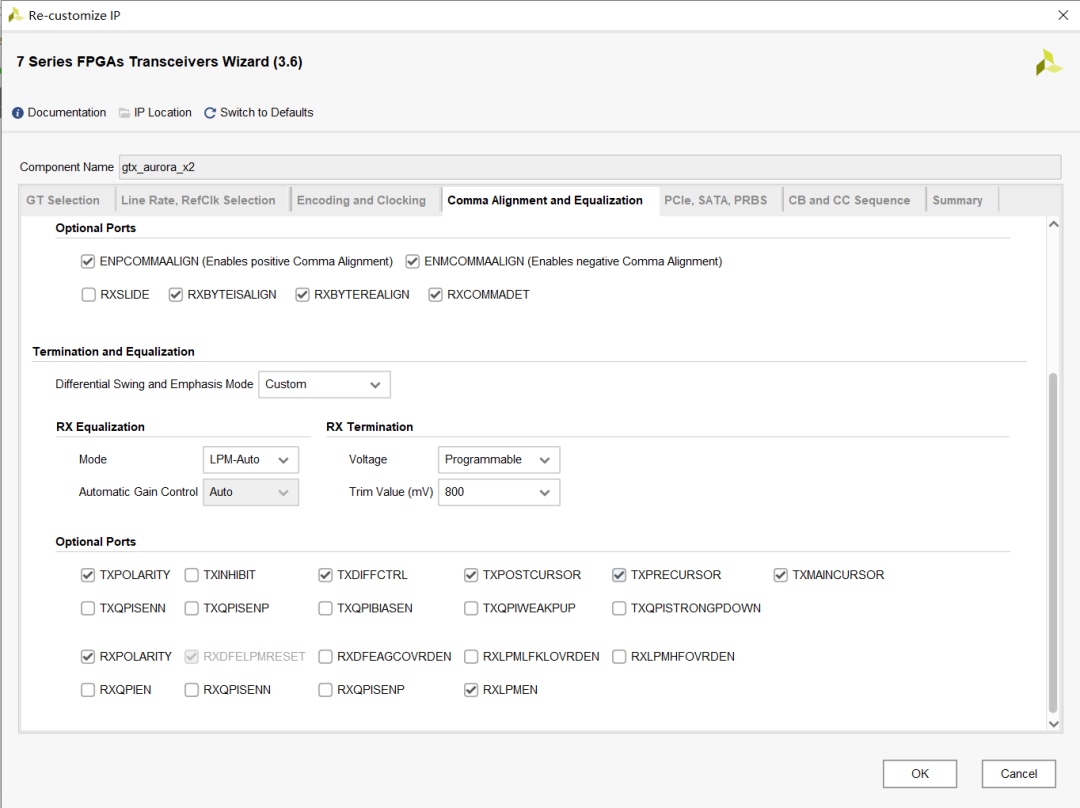

接着选，Comma Value我用的K28.5（BC码），具体看我源码中如何使用，其他配置默认！

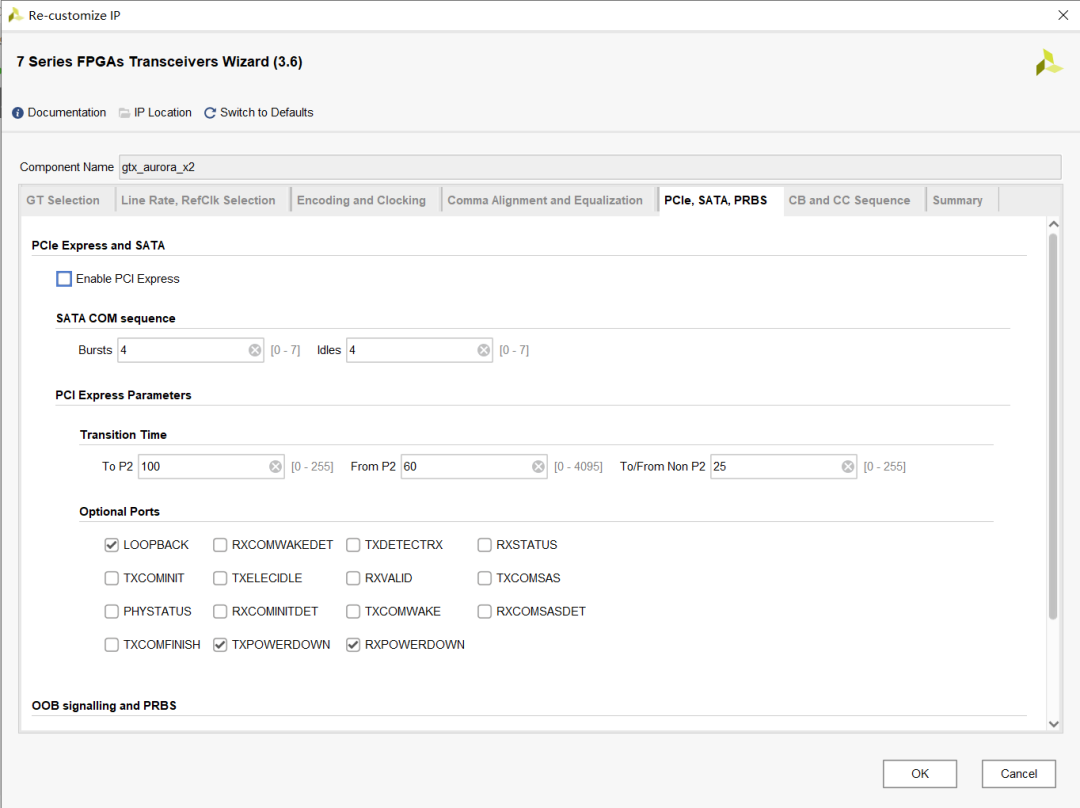

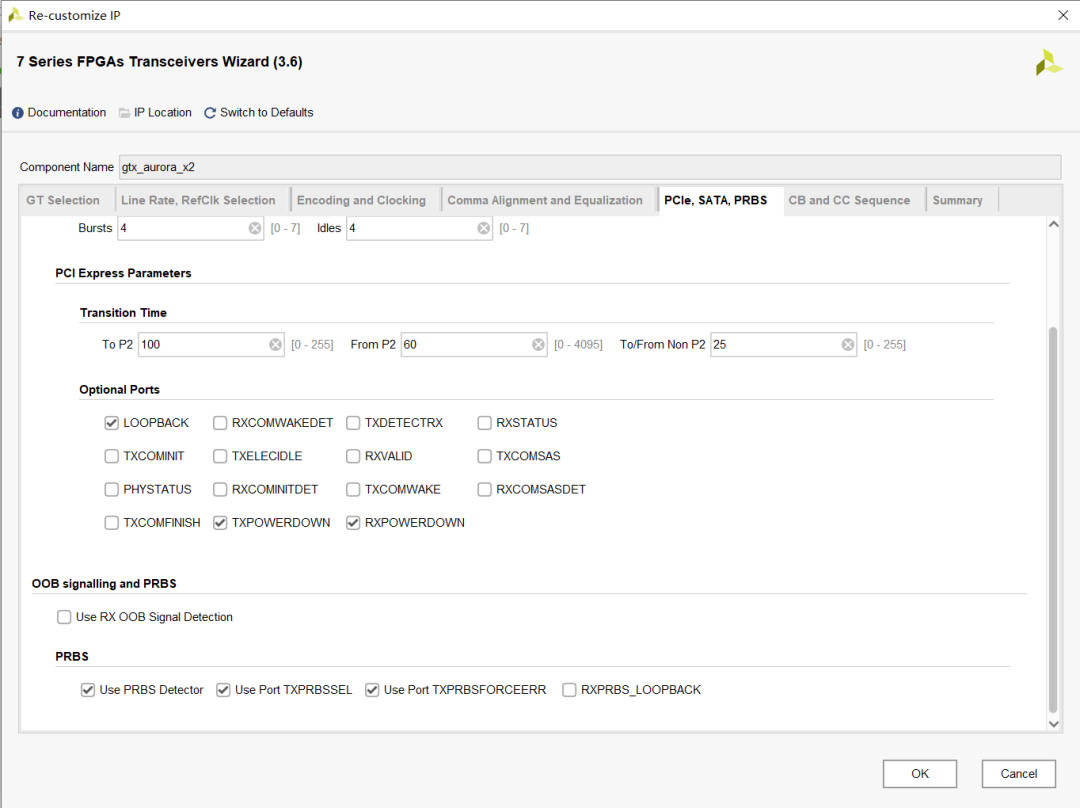

接着来，不用管，继续默认

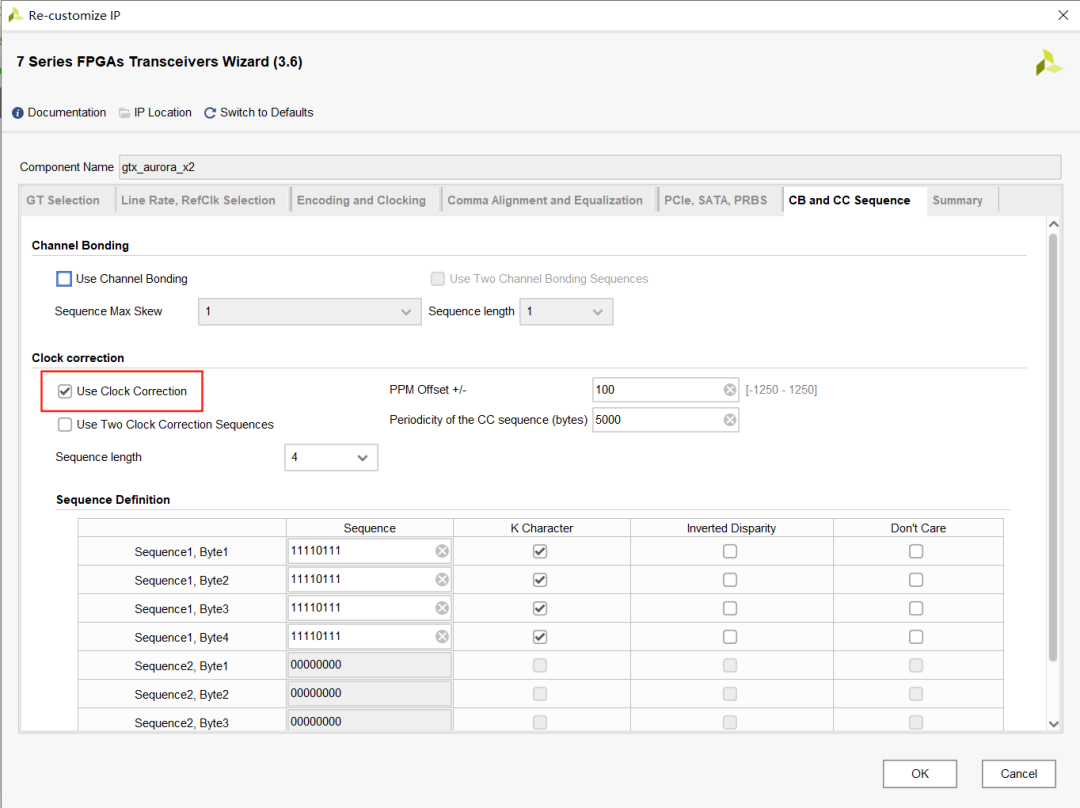

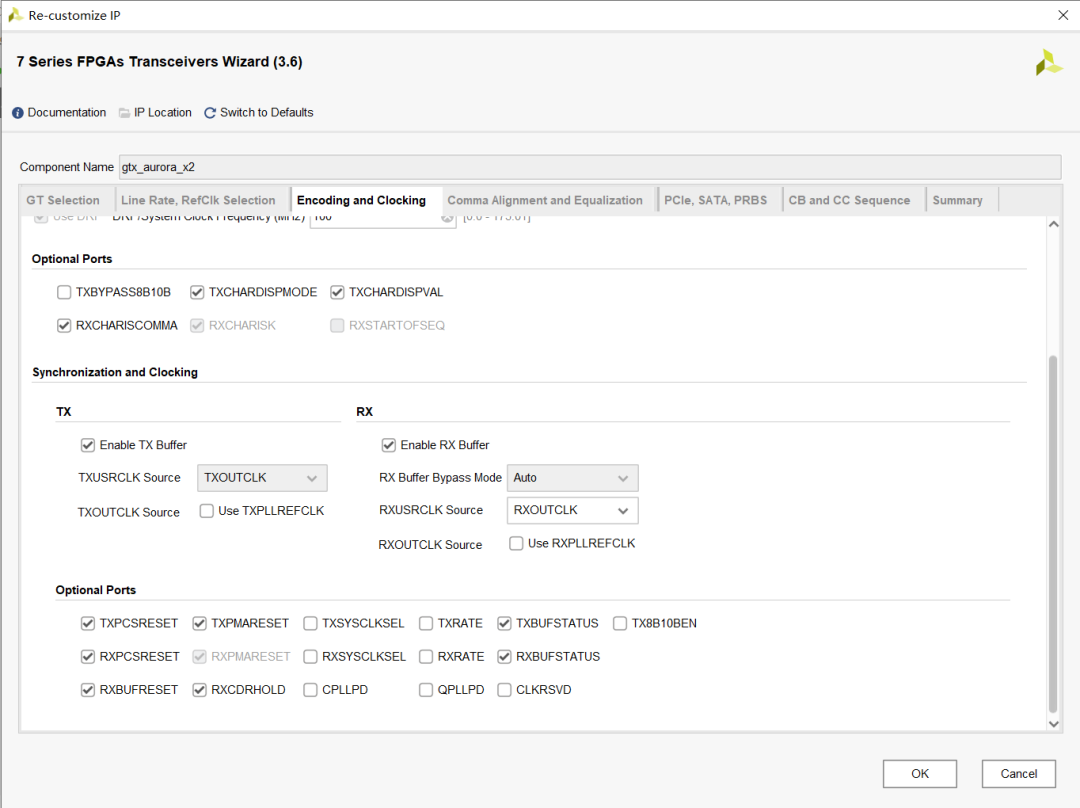

继续来，勾选USE CLOCK CORRECTION，其余默认

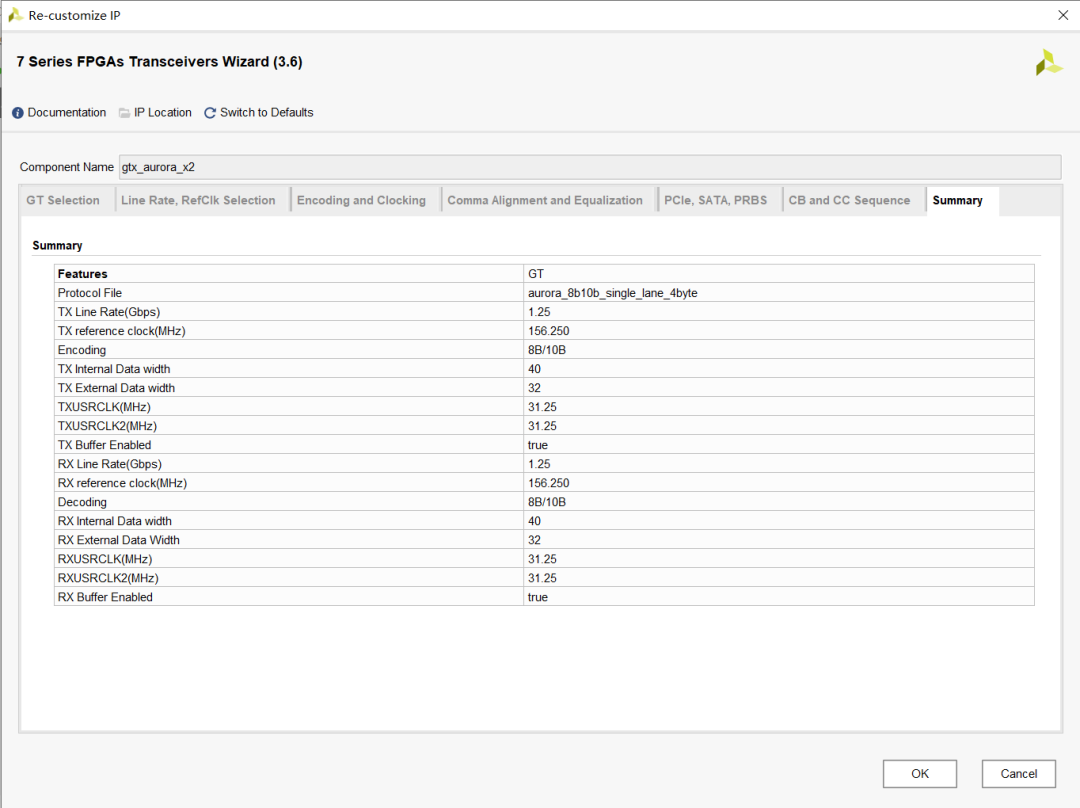

最后检查所配置结束的IP参数，强调：最后我们在逻辑里面发送用的时钟域是TXUSRCLK2，以此类推，接收用RXUSRCLK2！！！
2. 搭建工程且编码
好了，咱们开始爆改啊啊啊啊啊啊啊！

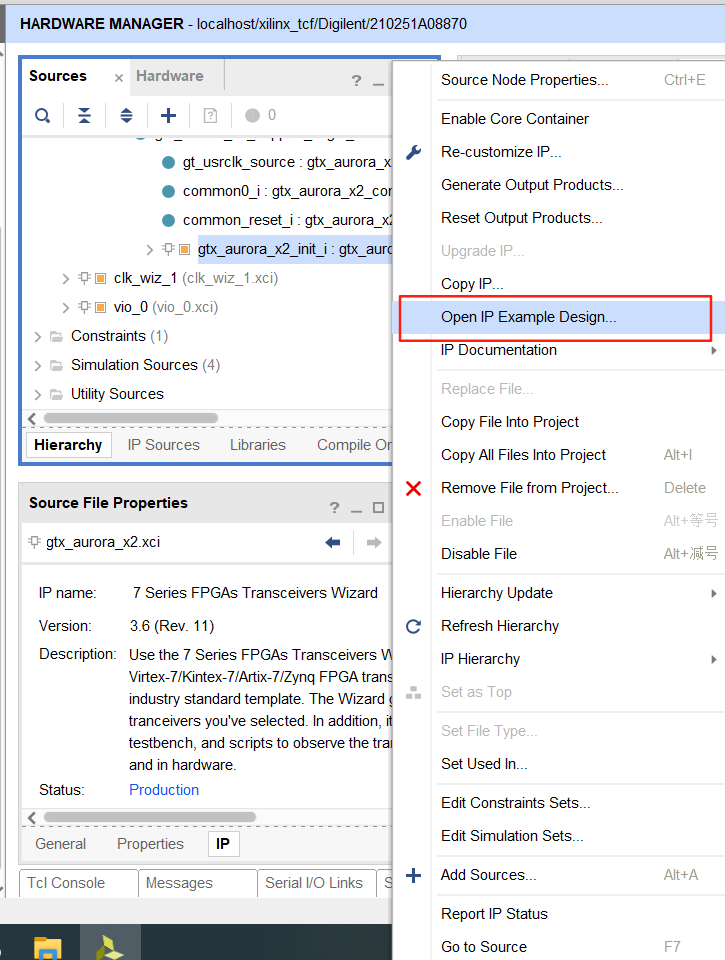

生成例程，完了只需修改例程顶层模块gtx_aurora_x2_exdes.v文件即可

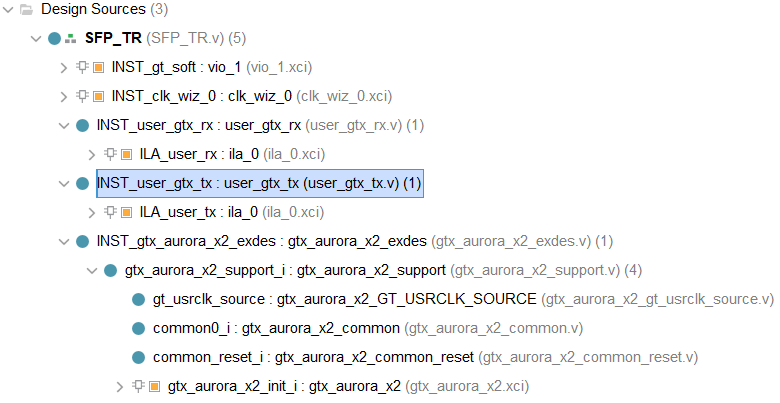

工程结构：
我在编码模块中用到了状态机，而在解码模块中没有用到，原则是：怎么简明怎么来
顶层：
描述：顶层当中的sys_on_sim在实际使用时换成sys_on即可！
`timescale 1ns / 1ps////////////////////////////////////////////////////////////////////////////////////Company: //Engineer: FPGA NXH////Create Date: 2025/06/09 10:56:46//Design Name: //Module Name: SFP_TR//Project Name: //Target Devices: //Tool Versions: //Description: ////Dependencies: ////Revision://Revision 0.01 - File Created//Additional Comments:////////////////////////////////////////////////////////////////////////////////////module SFP_TR( input CLK_i, input SFP_CLK_IN_P, input SFP_CLK_IN_N, input [1:0] SFP_2X_IN_P, input [1:0] SFP_2X_IN_N, output [1:0] SFP_2X_OUT_P, output [1:0] SFP_2X_OUT_N, output [3:0] state_led ); //---------------clkand reset----------------- wire sys_clk; wire sys_rstn; //---------------userrx----------------------- wire user_rx0_clk; wire [31:0] user_rx0_data; wire [3:0] user_rx0_kdata; wire user_rx0_link; wire user_rx1_clk; wire [31:0] user_rx1_data; wire [3:0] user_rx1_kdata; wire user_rx1_link; wire [31:0] rX0_data; wire rX0_data_vld; wire [31:0] rX1_data; wire rX1_data_vld; //---------------usertx----------------------- wire user_tx0_clk; wire [31:0] tx0_data; wire [3:0] tx0_kdata; wire user_tx0_link; wire user_tx1_clk; wire [31:0] tx1_data; wire [3:0] tx1_kdata; wire user_tx1_link; //---------------vio------------------------------- wire sys_on_sim; wire soft_vld; wire soft_rst_tx_vio; wire soft_rst_rx_vio; wire [2:0] gt_loopback_vio; wire soft_rst_tx_vio_r; wire soft_rst_rx_vio_r; wire [2:0] gt_loopback_vio_r; vio_1 INST_gt_soft( .clk (sys_clk ), //input wire clk .probe_out0(soft_vld ), //output wire [0 : 0] probe_out0 .probe_out1(soft_rst_tx_vio_r ), //output wire [0 : 0] probe_out1 .probe_out2(soft_rst_rx_vio_r ), //output wire [0 : 0] probe_out2 .probe_out3(gt_loopback_vio_r ), //output wire [2 : 0] probe_out3 .probe_out4(sys_on_sim )//output wire [0 : 0] probe_out4 ); assign soft_rst_tx_vio = soft_vld ? soft_rst_tx_vio_r : 'h0; assign soft_rst_rx_vio = soft_vld ? soft_rst_rx_vio_r : 'h0; assign gt_loopback_vio = soft_vld ? gt_loopback_vio_r : 'h0; //-------------------sys_on----------------------------- wire sys_on; reg [4:0] user_tx0_link_r='h0; reg [4:0] user_tx1_link_r='h0; always @(posedge user_tx0_clk)user_tx0_link_r <= {user_tx0_link_r[3:0], user_tx0_link}; always @ (posedge user_tx1_clk) user_tx1_link_r <= {user_tx1_link_r[3:0], user_tx1_link}; assign sys_on = (user_tx0_link_r[4] && user_tx1_link_r[4]) ? 'h1 : 'h0; //-------------------CLK-------------------------------- clk_wiz_0 INST_clk_wiz_0( // Clock out ports .clk_out1 (sys_clk), // output clk_out1 // Status and control signals .reset(1'b0), // input reset .locked(sys_rstn), // output locked // Clock in ports .clk_in1(CLK_i)// input clk_in1 ); //-----------------USER RX------------------------------ user_gtx_rx #( .DATA_WIDTH (32), .KCHAR_WIDTH(4) ) INST_user_gtx_rx ( .clk (sys_clk), .rstn(sys_rstn), .rx0_clk(user_rx0_clk), .rx0_link(user_rx0_link), .rx0_data(user_rx0_data), .rx0_kdata(user_rx0_kdata), .rx1_clk(user_rx1_clk), .rx1_link(user_rx1_link), .rx1_data(user_rx1_data), .rx1_kdata(user_rx1_kdata), .user_rx0_data(rx0_data), .user_rx0_data_vld(rx0_data_vld), .user_rx1_data(rx1_data), .user_rx1_data_vld(rx1_data_vld) ); //-----------------USER TX------------------------------ user_gtx_tx #( .DATA_WIDTH (32), .KCHAR_WIDTH(4) ) INST_user_gtx_tx( .clk (sys_clk), .rstn(sys_rstn), .sys_on(sys_on_sim), .tx0_clk(user_tx0_clk), .tx0_link(user_tx0_link), .tx0_data(tx0_data), .tx0_kdata(tx0_kdata), .tx1_clk(user_tx1_clk), .tx1_link(user_tx1_link), .tx1_data(tx1_data), .tx1_kdata(tx1_kdata) ); //-----------------GTX----------------------------------- gtx_aurora_x2_exdes INST_gtx_aurora_x2_exdes( .Q1_CLK1_GTREFCLK_PAD_N_IN (SFP_CLK_IN_N), .Q1_CLK1_GTREFCLK_PAD_P_IN(SFP_CLK_IN_P), .DRP_CLK_IN(sys_clk), .RXN_IN(SFP_2X_IN_N), .RXP_IN(SFP_2X_IN_P), .TXN_OUT(SFP_2X_OUT_N), .TXP_OUT(SFP_2X_OUT_P), //-------------user interface-------------------------.soft_rst_tx(soft_rst_tx_vio), .soft_rst_rx(soft_rst_rx_vio), .gt_loopback(gt_loopback_vio_r), .user_rx0_clk(user_rx0_clk), .user_rx0_data(user_rx0_data), .user_rx0_kdata(user_rx0_kdata), .user_rx0_link(user_rx0_link), .user_rx1_clk(user_rx1_clk), .user_rx1_data(user_rx1_data), .user_rx1_kdata(user_rx1_kdata), .user_rx1_link(user_rx1_link), .user_tx0_clk(user_tx0_clk), .user_tx0_data(tx0_data), .user_tx0_kdata(tx0_kdata), .user_tx0_link(user_tx0_link), .user_tx1_clk(user_tx1_clk), .user_tx1_data(tx1_data), .user_tx1_kdata(tx1_kdata), .user_tx1_link(user_tx1_link) ); //-----------------PORT----------------------------------- assign state_led = {user_tx0_link, user_tx1_link, user_rx0_link, user_rx1_link}; //-----------------DEBUG-----------------------------------endmodule
打包编码：
编码选用8b/10b，comma值用k28.5（BC码），有同学就好奇，k28.5为啥就是BC码，好吧，我当时也不懂艾，好在去取经了，现在就给你道来：0XBC=0B1011 1100，好，重点来了，0D28=0B11100,0D5=0B101,聪明的你已经发现了，BC=5和28相结合，K28.5分别把28和5换成二进制，然后放一起，再重新组合，低三位101放前面，高五位放后面，那不就成8‘b10111100即8’hBC了吗，以此类推，其他的k码怎么算你就知道了。关于k码换算，你得去看文章，我这里只是让你简单了解一下，别迷糊了，BC是怎么来的不知道！！！
我的编码顺序：
1.等待有效数据的到来，这个过程一直向链路发送空闲码，训练链路
2.等有效数据来了发送帧头，进行编码
3.开始发送有效数据（此项目我发送的是顺序数据，但是我在代码中预留了关键握手信号vld和rdy，有需要的同学后期自己在我的代码上面改就行了）
4.有效数据发送完成，进行编码
5.发送帧尾进行编码
6.接着发送空闲码进行编码
`timescale1ns / 1ps//////////////////////////////////////////////////////////////////////////////////// Company:// Engineer: FPGA NXH//// Create Date: 2025/06/09 1110// Design Name:// Module Name: user_gtx_tx// Project Name:// Target Devices:// Tool Versions:// Description://// Dependencies://// Revision:// Revision 0.01 - File Created// Additional Comments:////////////////////////////////////////////////////////////////////////////////////moduleuser_gtx_tx# ( parameter DATA_WIDTH =32, parameter KCHAR_WIDTH =4 ) ( input clk, input rstn, input sys_on, input tx0_clk, input tx0_link, output [DATA_WIDTH-1:0] tx0_data, output [KCHAR_WIDTH-1:0] tx0_kdata, input tx1_clk, input tx1_link, output [DATA_WIDTH-1:0] tx1_data, output [KCHAR_WIDTH-1:0] tx1_kdata ); //------------parameter------------------------------localparamK_CHAR_VLD =4'h0001; localparamK_CHAR_NVLD =4'h0000; localparamFRAM_IDLE =32'h55_AA_00_BC;//空闲码localparamFRAM_SOF =32'h55_AA_FF_BC;//帧头localparamFRAM_COM =32'h55_AA_DD_BC;//有效数据发送完毕localparamFRAM_EOF =32'h55_AA_EE_BC;//帧尾//------------register-------------------------------reg [DATA_WIDTH-1:0] cnt_data; reg [DATA_WIDTH-1:0] cnt_data_r=16'h0; reg cnt_data_vld; //-----------------预留------------------------------wire rx_data_rdy; reg tx0_data_r_vld; //---------------------------------------------------reg [DATA_WIDTH-1:0] tx0_data_r; reg [DATA_WIDTH-1:0] tx1_data_r; reg [KCHAR_WIDTH-1:0] tx0_kdata_r; reg [KCHAR_WIDTH-1:0] tx1_kdata_r; reg [3:0] tx0_link_r; reg [3:0] tx1_link_r; //------------status----------------------------------reg [3:0] state_cur; reg [3:0] state_next; //------------------link_r-----------------------------always@ (posedgetx0_clk) tx0_link_r <= {tx0_link_r[2:0], tx0_link}; always @ (posedge tx1_clk) tx1_link_r <= {tx1_link_r[2:0], tx1_link}; //---------------------预留-----------------------------assign rx_data_rdy = (state_cur == 'h1|| state_cur == 'h2) ? 1'h1 : 1'h0; //------------------------------------------------------always @ (posedge tx0_clk) beginif (!tx0_link_r[3]) begin cnt_data <= 'h0; cnt_data_vld <= 'h0; endelseif ((state_cur == 'h1|| state_cur == 'h2) && state_next != 'h3 && cnt_data <= 32'h0000_00FF) begin cnt_data <= cnt_data + 'h1; cnt_data_vld <= 'h1; endelsebegin cnt_data <= 'h0; cnt_data_vld <= 'h0; endendalways @ (posedge tx0_clk) cnt_data_r <= cnt_data; //------------------status------------------------------always @ (posedge tx0_clk) beginif (!tx0_link_r[3]) state_cur <= 'h0; else state_cur <= state_next; endalways @ (*) begin state_next = state_cur; case (state_cur) 'h0 : beginif (sys_on) if (tx0_link_r[3]) state_next = 'h1; else state_next = 'h0; else state_next = 'h0; end'h1 : state_next = 'h2; 'h2 : beginif (cnt_data_vld) begin state_next = 'h2; endelsebegin state_next = 'h3; endend'h3 : state_next = 'h4; 'h4 : state_next = 'h0; default : state_next = 'h4; endcaseendalways @ (posedge tx0_clk) beginif (!tx0_link_r[3]) begin tx0_data_r <= 'h0; tx0_kdata_r <= 'h0; endelsebegincase (state_cur) 'h0 : begin tx0_data_r <= FRAM_IDLE; //发送空闲码 tx0_kdata_r <= 4'b0001; end'h1 : begin tx0_data_r <= FRAM_SOF; //发送帧头 tx0_kdata_r <= K_CHAR_VLD; end'h2 : beginif (cnt_data_vld) begin//发送有效数据包 tx0_data_r <= cnt_data_r; tx0_kdata_r <= K_CHAR_NVLD; endelsebegin tx0_data_r <= FRAM_COM; //有效数据包发送完毕 tx0_kdata_r <= K_CHAR_VLD; endend'h3 : begin tx0_data_r <= FRAM_EOF; //发送帧尾 tx0_kdata_r <= K_CHAR_VLD; end'h4 : begin//发送空闲码 tx0_data_r <= FRAM_IDLE; tx0_kdata_r <= K_CHAR_VLD; enddefault : ; endcaseendend//------------------预留-------------------------------always @ (posedge tx0_clk) beginif (!tx0_link_r[3]) tx0_data_r_vld <= 'h0; elseif (state_cur == 'h2 && cnt_data_vld) //这个地方的cnt_data_vld最后可以换成实际的data_vld即可 tx0_data_r_vld <= 'h1; else tx0_data_r_vld <= 'h0; end//------------------output port------------------------assign tx0_data = tx0_data_r; assign tx0_kdata = tx0_kdata_r; assign tx1_data = tx1_link_r[3] ? tx0_data_r : 'h0; assign tx1_kdata = tx1_link_r[3] ? tx0_kdata_r : 'h0; //----------------------DEBUG----------------------- ila_0 ILA_user_tx ( .clk (tx0_clk), // input wire clk.probe0 ({ 'h0, sys_on, sys_on_r, cnt_data[31:0], //32 cnt_data_r, cnt_data_vld, tx0_data_r_vld, state_cur, //4 state_next, //4 tx0_link_r, //4 tx1_link_r, //4 tx0_data_r, //32 tx0_kdata_r //32 }) // input wire [255:0] probe0 );endmodule
解包解码：
心善的我再提示一下：解码出来的时钟域最后你得换成你自己的系统时钟域，不太明白的同学就又问了，怎么换时钟域啊啊啊啊啊，还能怎么换，异步fifo，用爆FPGA芯片资源，用就行了。此项目我没转换红红火火恍恍惚惚
解码思路：
根据自己定制的编码协议进行解码
1.先解数据帧头
2.得到有效数据
`timescale1ns / 1ps//////////////////////////////////////////////////////////////////////////////////// Company:// Engineer: FPGA NXH//// Create Date: 2025/06/09 1147// Design Name:// Module Name: user_gtx_rx// Project Name:// Target Devices:// Tool Versions:// Description://// Dependencies://// Revision:// Revision 0.01 - File Created// Additional Comments:////////////////////////////////////////////////////////////////////////////////////moduleuser_gtx_rx # ( parameter DATA_WIDTH =32, parameter KCHAR_WIDTH =4 ) ( input clk, input rstn, input rx0_clk, input rx0_link, input [DATA_WIDTH-1:0] rx0_data, input [KCHAR_WIDTH-1:0] rx0_kdata, input rx1_clk, input rx1_link, input [DATA_WIDTH-1:0] rx1_data, input [KCHAR_WIDTH-1:0] rx1_kdata, output [DATA_WIDTH-1:0] user_rx0_data, output user_rx0_data_vld, output [DATA_WIDTH-1:0] user_rx1_data, output user_rx1_data_vld ); //------------paramerter-----------------------------localparamFRAM_SOF =32'h55_AA_FF_BC;//帧头localparamFRAM_EOF =32'h55_AA_EE_BC;//帧尾//------------register-------------------------------reg [DATA_WIDTH-1:0] rx0_data_r =0; reg [DATA_WIDTH-1:0] rx1_data_r =0; reg [DATA_WIDTH-1:0] rx0_data_1r=0; reg [DATA_WIDTH-1:0] rx1_data_1r=0; reg [DATA_WIDTH-1:0] rx0_data_2r=0; reg [DATA_WIDTH-1:0] rx1_data_2r=0; reg [KCHAR_WIDTH-1:0] rx0_kdata_r ='h0; reg [KCHAR_WIDTH-1:0] rx1_kdata_r ='h0; reg [KCHAR_WIDTH-1:0] rx0_kdata_1r='h0; reg [KCHAR_WIDTH-1:0] rx1_kdata_1r='h0; reg [KCHAR_WIDTH-1:0] rx0_kdata_2r='h0; reg [KCHAR_WIDTH-1:0] rx1_kdata_2r='h0; reg [3:0] rx0_link_r; reg [3:0] rx1_link_r; reg [DATA_WIDTH-1:0] user_data; reg user_data_vld; reg sof_vld; reg eof_vld; reg frame_vld; reg [2:0] state_cur; reg [2:0] state_next; //------------------link_r buffer---------------------------always@ (posedgerx0_clk) rx0_link_r <= {rx0_link_r[2:0], rx0_link}; always @ (posedge rx1_clk) rx1_link_r <= {rx1_link_r[2:0], rx1_link}; //------------------data buffer-----------------------------always @ (posedge rx0_clk) begin rx0_data_r <= rx0_data; rx0_data_1r <= rx0_data_r; rx0_data_2r <= rx0_data_1r; rx1_data_r <= rx1_data; rx1_data_1r <= rx1_data_r; rx1_data_2r <= rx1_data_1r; endalways @ (posedge rx0_clk) begin rx0_kdata_r <= rx0_kdata; rx0_kdata_1r <= rx0_kdata_r; rx0_kdata_2r <= rx0_kdata_1r; rx1_kdata_r <= rx1_kdata; rx1_kdata_1r <= rx1_kdata_r; rx1_kdata_2r <= rx1_kdata_1r; endalways @ (posedge rx0_clk) beginif (!rx0_link_r[3]) begin sof_vld <= 'h0; endelseif (rx0_data_r==FRAM_SOF && rx0_kdata_r=='h1) begin sof_vld <= 'h1; endelsebegin sof_vld <= 'h0; endendalways @ (posedge rx0_clk) beginif (!rx0_link_r[3]) begin eof_vld <= 'h0; endelseif (rx0_data_r==FRAM_EOF && rx0_kdata_r=='h1) begin eof_vld <= 'h1; endelsebegin eof_vld <= 'h0; endendalways @ (posedge rx0_clk) beginif (!rx0_link_r[3]) begin frame_vld <= 'h0; endelseif (sof_vld || eof_vld) begin frame_vld <= 'h0; endelsebegin frame_vld <= 'h1; endendalways @ (posedge rx0_clk) beginif (!rx0_link_r[3]) begin user_data <= 'h0; user_data_vld <= 'h0; endelseif (rx0_kdata_2r=='h0 && frame_vld) begin user_data <= rx0_data_2r; user_data_vld <= 'h1; endelsebegin user_data <= user_data; user_data_vld <= 'h0; endend//-------------------output port---------------------assign user_rx0_data = user_data; assign user_rx0_data_vld = user_data_vld; assign user_rx1_data = rx1_link_r[3] ? user_data : 'h0; assign user_rx1_data_vld = rx1_link_r[3] ? user_data_vld : 'h0; //----------------------DEBUG----------------------- ila_0 ILA_user_rx ( .clk (rx0_clk), // input wire clk.probe0 ({ 'h0, rx0_data, rx0_kdata, sof_vld, eof_vld, frame_vld, // state_cur,// state_next, rx0_link_r, rx1_link_r, rx0_data_r, rx0_kdata_r, rx0_data_1r, rx0_kdata_1r, rx0_data_2r, rx0_kdata_2r, user_data, user_data_vld }) // input wire [255:0] probe0 );endmodule
GT收发顶层：
这个模块中，你得把原有的帧生成模块和帧检查模块屏蔽掉使用！！！！里面还有的参数进行了修改，同学们自己看源码即可。
////////////////////////////////////////////////////////////////////////////////// ____ ____ // / // / ///___/ / Vendor: Xilinx // / Version : 3.6// Application : 7 Series FPGAs Transceivers Wizard // / / Filename : gtx_aurora_x2_exdes.v///___/ / // / // \___/\___ //////Module gtx_aurora_x2_exdes//Generated by Xilinx 7 Series FPGAs Transceivers Wizard//////(c)Copyright 2010-2012 Xilinx, Inc. All rights reserved.////This file contains confidential and proprietary information//of Xilinx, Inc. and is protected under U.S. and//international copyright and other intellectual property//laws.////DISCLAIMER//This disclaimer is not a license and does not grant any//rights to the materials distributed herewith. Except as//otherwise provided in a valid license issued to you by//Xilinx, and to the maximum extent permitted by applicable//law:(1)THESE MATERIALS ARE MADE AVAILABLE"AS IS"AND//WITH ALL FAULTS, AND XILINX HEREBY DISCLAIMS ALL WARRANTIES//AND CONDITIONS, EXPRESS, IMPLIED, OR STATUTORY, INCLUDING//BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY, NON-//INFRINGEMENT, OR FITNESS FOR ANY PARTICULAR PURPOSE; and//(2)Xilinx shall not be liable(whether in contract or tort, // including negligence, or under any other theory of // liability)for any loss or damage of any kind or nature//related to, arising under or in connection with these//materials, including for any direct, or any indirect,//special, incidental, or consequential loss or damage//(including loss of data, profits, goodwill, or any type of // loss or damage suffered as a result of any action brought // by a third party)evenifsuch damage or loss was//reasonably foreseeable or Xilinx had been advised of the//possibility of the same.////CRITICAL APPLICATIONS//Xilinx products are not designed or intended to be fail-//safe, or for use in any application requiring fail-safe//performance, such as life-support or safety devices or//systems, Class III medical devices, nuclear facilities,//applications related to the deployment of airbags, or any//other applications that could lead to death, personal//injury, or severe property or environmental damage//(individually and collectively, "Critical // Applications"). Customer assumes the sole risk and//liability of any use of Xilinx products in Critical//Applications, subject only to applicable laws and//regulations governing limitations on product liability.////THIS COPYRIGHT NOTICE AND DISCLAIMER MUST BE RETAINED AS//PART OF THIS FILE AT ALL TIMES. `timescale 1ns / 1ps `define DLY#1(*DowngradeIPIdentifiedWarnings="yes" *)//***********************************Entity Declaration************************(*CORE_GENERATION_INFO= "gtx_aurora_x2,gtwizard_v3_6_11,{protocol_file=aurora_8b10b_single_lane_4byte}" *)module gtx_aurora_x2_exdes#( parameterEXAMPLE_CONFIG_INDEPENDENT_LANES = 1,//configuration for frame gen and check parameterEXAMPLE_LANE_WITH_START_CHAR = 0, // specifies lane with unique start frame char parameterEXAMPLE_WORDS_IN_BRAM = 512, // specifies amount of data in BRAM parameterEXAMPLE_SIM_GTRESET_SPEEDUP = "TRUE", // simulation setting for GT SecureIP model parameterEXAMPLE_USE_CHIPSCOPE = 0, // Set to 1 to use Chipscope to drive resets parameterSTABLE_CLOCK_PERIOD = 10 )( input wire Q1_CLK1_GTREFCLK_PAD_N_IN, input wire Q1_CLK1_GTREFCLK_PAD_P_IN, input wire DRP_CLK_IN, input wire [1:0] RXN_IN, input wire [1:0] RXP_IN, output wire [1:0] TXN_OUT, output wire [1:0] TXP_OUT, //-------------user interface------------------------- input soft_rst_tx, input soft_rst_rx, input [2:0] gt_loopback, output user_rx0_clk, output [31:0] user_rx0_data, output [3:0] user_rx0_kdata, output user_rx0_link, output user_rx1_clk, output [31:0] user_rx1_data, output [3:0] user_rx1_kdata, output user_rx1_link, output user_tx0_clk, input [31:0] user_tx0_data, input [3:0] user_tx0_kdata, output user_tx0_link, output user_tx1_clk, input [31:0] user_tx1_data, input [3:0] user_tx1_kdata, output user_tx1_link ); wire soft_reset_i; (*mark_debug= "TRUE" *)wire soft_reset_vio_i;//************************** Register Declarations **************************** wire gt_txfsmresetdone_i; wire gt_rxfsmresetdone_i; (*ASYNC_REG= "TRUE" *)reg gt_txfsmresetdone_r; (*ASYNC_REG= "TRUE" *)reg gt_txfsmresetdone_r2; wire gt0_txfsmresetdone_i; wire gt0_rxfsmresetdone_i; (*ASYNC_REG= "TRUE" *)reg gt0_txfsmresetdone_r; (*ASYNC_REG= "TRUE" *)reg gt0_txfsmresetdone_r2; (*ASYNC_REG= "TRUE" *)reg gt0_rxfsmresetdone_r; (*ASYNC_REG= "TRUE" *)reg gt0_rxfsmresetdone_r2; (*ASYNC_REG= "TRUE" *)reg gt0_rxresetdone_r; (*ASYNC_REG= "TRUE" *)reg gt0_rxresetdone_r2; (*ASYNC_REG= "TRUE" *)reg gt0_rxresetdone_r3; (*ASYNC_REG= "TRUE" *)reg gt0_rxresetdone_vio_r; (*ASYNC_REG= "TRUE" *)reg gt0_rxresetdone_vio_r2; (*ASYNC_REG= "TRUE" *)reg gt0_rxresetdone_vio_r3; wire gt1_txfsmresetdone_i; wire gt1_rxfsmresetdone_i; (*ASYNC_REG= "TRUE" *)reg gt1_txfsmresetdone_r; (*ASYNC_REG= "TRUE" *)reg gt1_txfsmresetdone_r2; (*ASYNC_REG= "TRUE" *)reg gt1_rxfsmresetdone_r; (*ASYNC_REG= "TRUE" *)reg gt1_rxfsmresetdone_r2; (*ASYNC_REG= "TRUE" *)reg gt1_rxresetdone_r; (*ASYNC_REG= "TRUE" *)reg gt1_rxresetdone_r2; (*ASYNC_REG= "TRUE" *)reg gt1_rxresetdone_r3; (*ASYNC_REG= "TRUE" *)reg gt1_rxresetdone_vio_r; (*ASYNC_REG= "TRUE" *)reg gt1_rxresetdone_vio_r2; (*ASYNC_REG= "TRUE" *)reg gt1_rxresetdone_vio_r3; reg [5:0] reset_counter = 0; reg [3:0] reset_pulse;//**************************** Wire Declarations ******************************////------------------------GT Wrapper Wires------------------------------//________________________________________________________________________//________________________________________________________________________//GT0(X1Y5)//-------------------------------CPLL Ports------------------------------- wire gt0_cpllfbclklost_i; wire gt0_cplllock_i; wire gt0_cpllrefclklost_i; wire gt0_cpllreset_i; //--------------------------Channel - DRP Ports -------------------------- wire [8:0] gt0_drpaddr_i; wire [15:0] gt0_drpdi_i; wire [15:0] gt0_drpdo_i; wire gt0_drpen_i; wire gt0_drprdy_i; wire gt0_drpwe_i; //-------------------------Digital Monitor Ports-------------------------- wire [7:0] gt0_dmonitorout_i; //-----------------------------Loopback Ports----------------------------- wire [2:0] gt0_loopback_i; //----------------------------Power-Down Ports---------------------------- wire [1:0] gt0_rxpd_i; wire [1:0] gt0_txpd_i; //-------------------RX Initialization and Reset Ports-------------------- wire gt0_eyescanreset_i; wire gt0_rxuserrdy_i; //------------------------RX Margin Analysis Ports------------------------ wire gt0_eyescandataerror_i; wire gt0_eyescantrigger_i; //-----------------------Receive Ports - CDR Ports------------------------ wire gt0_rxcdrhold_i; wire gt0_rxcdrovrden_i; //-----------------Receive Ports - Clock Correction Ports----------------- wire [1:0] gt0_rxclkcorcnt_i; //----------------Receive Ports - FPGA RX interface Ports----------------- wire [31:0] gt0_rxdata_i; //-----------------Receive Ports - Pattern Checker Ports------------------ wire gt0_rxprbserr_i; wire [2:0] gt0_rxprbssel_i; //-----------------Receive Ports - Pattern Checker ports------------------ wire gt0_rxprbscntreset_i; //----------------Receive Ports - RX 8B/10B Decoder Ports----------------- wire [3:0] gt0_rxdisperr_i; wire [3:0] gt0_rxnotintable_i; //-------------------------Receive Ports - RX AFE------------------------- wire gt0_gtxrxp_i; //----------------------Receive Ports - RX AFE Ports---------------------- wire gt0_gtxrxn_i; //-----------------Receive Ports - RX Buffer Bypass Ports----------------- wire gt0_rxbufreset_i; wire [2:0] gt0_rxbufstatus_i; //------------Receive Ports - RX Byte and Word Alignment Ports------------ wire gt0_rxbyteisaligned_i; wire gt0_rxbyterealign_i; wire gt0_rxcommadet_i; wire gt0_rxmcommaalignen_i; wire gt0_rxpcommaalignen_i; //-------------------Receive Ports - RX Equalizer Ports------------------- wire gt0_rxdfelpmreset_i; wire [6:0] gt0_rxmonitorout_i; wire [1:0] gt0_rxmonitorsel_i; //-------------Receive Ports - RX Fabric Output Control Ports------------- wire gt0_rxoutclk_i; wire gt0_rxoutclkfabric_i; //-----------Receive Ports - RX Initialization and Reset Ports------------ wire gt0_gtrxreset_i; wire gt0_rxpcsreset_i; wire gt0_rxpmareset_i; //----------------Receive Ports - RX Margin Analysis ports---------------- wire gt0_rxlpmen_i; //---------------Receive Ports - RX Polarity Control Ports---------------- wire gt0_rxpolarity_i; //-----------------Receive Ports - RX8B/10B Decoder Ports----------------- wire [3:0] gt0_rxchariscomma_i; wire [3:0] gt0_rxcharisk_i; //------------Receive Ports -RX Initialization and Reset Ports------------ wire gt0_rxresetdone_i; //----------------------TX Configurable Driver Ports---------------------- wire [4:0] gt0_txpostcursor_i; wire [4:0] gt0_txprecursor_i; //-------------------TX Initialization and Reset Ports-------------------- wire gt0_gttxreset_i; wire gt0_txuserrdy_i; //--------------Transmit Ports - 8b10b Encoder Control Ports-------------- wire [3:0] gt0_txchardispmode_i; wire [3:0] gt0_txchardispval_i; //----------------Transmit Ports - Pattern Generator Ports---------------- wire gt0_txprbsforceerr_i; //--------------------Transmit Ports - TX Buffer Ports-------------------- wire [1:0] gt0_txbufstatus_i; //-------------Transmit Ports - TX Configurable Driver Ports-------------- wire [3:0] gt0_txdiffctrl_i; wire [6:0] gt0_txmaincursor_i; //----------------Transmit Ports - TX Data Path interface----------------- wire [31:0] gt0_txdata_i; //--------------Transmit Ports - TX Driver and OOB signaling-------------- wire gt0_gtxtxn_i; wire gt0_gtxtxp_i; //---------Transmit Ports - TX Fabric Clock Output Control Ports---------- wire gt0_txoutclk_i; wire gt0_txoutclkfabric_i; wire gt0_txoutclkpcs_i; //-------------------Transmit Ports - TX Gearbox Ports-------------------- wire [3:0] gt0_txcharisk_i; //-----------Transmit Ports - TX Initialization and Reset Ports----------- wire gt0_txpcsreset_i; wire gt0_txpmareset_i; wire gt0_txresetdone_i; //---------------Transmit Ports - TX Polarity Control Ports--------------- wire gt0_txpolarity_i; //----------------Transmit Ports - pattern Generator Ports---------------- wire [2:0] gt0_txprbssel_i; //________________________________________________________________________//________________________________________________________________________//GT1(X1Y6)//-------------------------------CPLL Ports------------------------------- wire gt1_cpllfbclklost_i; wire gt1_cplllock_i; wire gt1_cpllrefclklost_i; wire gt1_cpllreset_i; //--------------------------Channel - DRP Ports -------------------------- wire [8:0] gt1_drpaddr_i; wire [15:0] gt1_drpdi_i; wire [15:0] gt1_drpdo_i; wire gt1_drpen_i; wire gt1_drprdy_i; wire gt1_drpwe_i; //-------------------------Digital Monitor Ports-------------------------- wire [7:0] gt1_dmonitorout_i; //-----------------------------Loopback Ports----------------------------- wire [2:0] gt1_loopback_i; //----------------------------Power-Down Ports---------------------------- wire [1:0] gt1_rxpd_i; wire [1:0] gt1_txpd_i; //-------------------RX Initialization and Reset Ports-------------------- wire gt1_eyescanreset_i; wire gt1_rxuserrdy_i; //------------------------RX Margin Analysis Ports------------------------ wire gt1_eyescandataerror_i; wire gt1_eyescantrigger_i; //-----------------------Receive Ports - CDR Ports------------------------ wire gt1_rxcdrhold_i; wire gt1_rxcdrovrden_i; //-----------------Receive Ports - Clock Correction Ports----------------- wire [1:0] gt1_rxclkcorcnt_i; //----------------Receive Ports - FPGA RX interface Ports----------------- wire [31:0] gt1_rxdata_i; //-----------------Receive Ports - Pattern Checker Ports------------------ wire gt1_rxprbserr_i; wire [2:0] gt1_rxprbssel_i; //-----------------Receive Ports - Pattern Checker ports------------------ wire gt1_rxprbscntreset_i; //----------------Receive Ports - RX 8B/10B Decoder Ports----------------- wire [3:0] gt1_rxdisperr_i; wire [3:0] gt1_rxnotintable_i; //-------------------------Receive Ports - RX AFE------------------------- wire gt1_gtxrxp_i; //----------------------Receive Ports - RX AFE Ports---------------------- wire gt1_gtxrxn_i; //-----------------Receive Ports - RX Buffer Bypass Ports----------------- wire gt1_rxbufreset_i; wire [2:0] gt1_rxbufstatus_i; //------------Receive Ports - RX Byte and Word Alignment Ports------------ wire gt1_rxbyteisaligned_i; wire gt1_rxbyterealign_i; wire gt1_rxcommadet_i; wire gt1_rxmcommaalignen_i; wire gt1_rxpcommaalignen_i; //-------------------Receive Ports - RX Equalizer Ports------------------- wire gt1_rxdfelpmreset_i; wire [6:0] gt1_rxmonitorout_i; wire [1:0] gt1_rxmonitorsel_i; //-------------Receive Ports - RX Fabric Output Control Ports------------- wire gt1_rxoutclk_i; wire gt1_rxoutclkfabric_i; //-----------Receive Ports - RX Initialization and Reset Ports------------ wire gt1_gtrxreset_i; wire gt1_rxpcsreset_i; wire gt1_rxpmareset_i; //----------------Receive Ports - RX Margin Analysis ports---------------- wire gt1_rxlpmen_i; //---------------Receive Ports - RX Polarity Control Ports---------------- wire gt1_rxpolarity_i; //-----------------Receive Ports - RX8B/10B Decoder Ports----------------- wire [3:0] gt1_rxchariscomma_i; wire [3:0] gt1_rxcharisk_i; //------------Receive Ports -RX Initialization and Reset Ports------------ wire gt1_rxresetdone_i; //----------------------TX Configurable Driver Ports---------------------- wire [4:0] gt1_txpostcursor_i; wire [4:0] gt1_txprecursor_i; //-------------------TX Initialization and Reset Ports-------------------- wire gt1_gttxreset_i; wire gt1_txuserrdy_i; //--------------Transmit Ports - 8b10b Encoder Control Ports-------------- wire [3:0] gt1_txchardispmode_i; wire [3:0] gt1_txchardispval_i; //----------------Transmit Ports - Pattern Generator Ports---------------- wire gt1_txprbsforceerr_i; //--------------------Transmit Ports - TX Buffer Ports-------------------- wire [1:0] gt1_txbufstatus_i; //-------------Transmit Ports - TX Configurable Driver Ports-------------- wire [3:0] gt1_txdiffctrl_i; wire [6:0] gt1_txmaincursor_i; //----------------Transmit Ports - TX Data Path interface----------------- wire [31:0] gt1_txdata_i; //--------------Transmit Ports - TX Driver and OOB signaling-------------- wire gt1_gtxtxn_i; wire gt1_gtxtxp_i; //---------Transmit Ports - TX Fabric Clock Output Control Ports---------- wire gt1_txoutclk_i; wire gt1_txoutclkfabric_i; wire gt1_txoutclkpcs_i; //-------------------Transmit Ports - TX Gearbox Ports-------------------- wire [3:0] gt1_txcharisk_i; //-----------Transmit Ports - TX Initialization and Reset Ports----------- wire gt1_txpcsreset_i; wire gt1_txpmareset_i; wire gt1_txresetdone_i; //---------------Transmit Ports - TX Polarity Control Ports--------------- wire gt1_txpolarity_i; //----------------Transmit Ports - pattern Generator Ports---------------- wire [2:0] gt1_txprbssel_i; //____________________________COMMONPORTS________________________________ //--------------------Common Block - Ref Clock Ports--------------------- wire gt0_gtrefclk1_common_i; //-----------------------Common Block - QPLL Ports------------------------ wire gt0_qplllock_i; wire gt0_qpllrefclklost_i; wire gt0_qpllreset_i; //-----------------------------Global Signals----------------------------- wire drpclk_in_i; wire DRPCLK_IN; wire gt0_tx_system_reset_c; wire gt0_rx_system_reset_c; wire gt1_tx_system_reset_c; wire gt1_rx_system_reset_c; wire tied_to_ground_i; wire [63:0] tied_to_ground_vec_i; wire tied_to_vcc_i; wire [7:0] tied_to_vcc_vec_i; wire GTTXRESET_IN; wire GTRXRESET_IN; wire CPLLRESET_IN; wire QPLLRESET_IN; //---------------------------User Clocks--------------------------------- wire gt0_txusrclk_i; wire gt0_txusrclk2_i; wire gt0_rxusrclk_i; wire gt0_rxusrclk2_i; wire gt1_txusrclk_i; wire gt1_txusrclk2_i; wire gt1_rxusrclk_i; wire gt1_rxusrclk2_i; //---------------------------Reference Clocks---------------------------- wire q1_clk1_refclk_i; //---------------------Frame check/gen Module Signals-------------------- wire gt0_matchn_i; wire [3:0] gt0_txcharisk_float_i; wire [15:0] gt0_txdata_float16_i; wire [31:0] gt0_txdata_float_i; wire gt0_block_sync_i; wire gt0_track_data_i; wire [7:0] gt0_error_count_i; wire gt0_frame_check_reset_i; wire gt0_inc_in_i; wire gt0_inc_out_i; wire [31:0] gt0_unscrambled_data_i; wire gt1_matchn_i; wire [3:0] gt1_txcharisk_float_i; wire [15:0] gt1_txdata_float16_i; wire [31:0] gt1_txdata_float_i; wire gt1_block_sync_i; wire gt1_track_data_i; wire [7:0] gt1_error_count_i; wire gt1_frame_check_reset_i; wire gt1_inc_in_i; wire gt1_inc_out_i; wire [31:0] gt1_unscrambled_data_i; wire reset_on_data_error_i; wire track_data_out_i; //---------------------Chipscope Signals---------------------------------(*mark_debug= "TRUE" *)wire rxresetdone_vio_i; wire [35:0] tx_data_vio_control_i; wire [35:0] rx_data_vio_control_i; wire [35:0] shared_vio_control_i; wire [35:0] ila_control_i; wire [35:0] channel_drp_vio_control_i; wire [35:0] common_drp_vio_control_i; wire [31:0] tx_data_vio_async_in_i; wire [31:0] tx_data_vio_sync_in_i; wire [31:0] tx_data_vio_async_out_i; wire [31:0] tx_data_vio_sync_out_i; wire [31:0] rx_data_vio_async_in_i; wire [31:0] rx_data_vio_sync_in_i; wire [31:0] rx_data_vio_async_out_i; wire [31:0] rx_data_vio_sync_out_i; wire [31:0] shared_vio_in_i; wire [31:0] shared_vio_out_i; wire [163:0] ila_in_i; wire [31:0] channel_drp_vio_async_in_i; wire [31:0] channel_drp_vio_sync_in_i; wire [31:0] channel_drp_vio_async_out_i; wire [31:0] channel_drp_vio_sync_out_i; wire [31:0] common_drp_vio_async_in_i; wire [31:0] common_drp_vio_sync_in_i; wire [31:0] common_drp_vio_async_out_i; wire [31:0] common_drp_vio_sync_out_i; wire [31:0] gt0_tx_data_vio_async_in_i; wire [31:0] gt0_tx_data_vio_sync_in_i; wire [31:0] gt0_tx_data_vio_async_out_i; wire [31:0] gt0_tx_data_vio_sync_out_i; wire [31:0] gt0_rx_data_vio_async_in_i; wire [31:0] gt0_rx_data_vio_sync_in_i; wire [31:0] gt0_rx_data_vio_async_out_i; wire [31:0] gt0_rx_data_vio_sync_out_i; wire [163:0] gt0_ila_in_i; wire [31:0] gt0_channel_drp_vio_async_in_i; wire [31:0] gt0_channel_drp_vio_sync_in_i; wire [31:0] gt0_channel_drp_vio_async_out_i; wire [31:0] gt0_channel_drp_vio_sync_out_i; wire [31:0] gt0_common_drp_vio_async_in_i; wire [31:0] gt0_common_drp_vio_sync_in_i; wire [31:0] gt0_common_drp_vio_async_out_i; wire [31:0] gt0_common_drp_vio_sync_out_i; wire [31:0] gt1_tx_data_vio_async_in_i; wire [31:0] gt1_tx_data_vio_sync_in_i; wire [31:0] gt1_tx_data_vio_async_out_i; wire [31:0] gt1_tx_data_vio_sync_out_i; wire [31:0] gt1_rx_data_vio_async_in_i; wire [31:0] gt1_rx_data_vio_sync_in_i; wire [31:0] gt1_rx_data_vio_async_out_i; wire [31:0] gt1_rx_data_vio_sync_out_i; wire [163:0] gt1_ila_in_i; wire [31:0] gt1_channel_drp_vio_async_in_i; wire [31:0] gt1_channel_drp_vio_sync_in_i; wire [31:0] gt1_channel_drp_vio_async_out_i; wire [31:0] gt1_channel_drp_vio_sync_out_i; wire [31:0] gt1_common_drp_vio_async_in_i; wire [31:0] gt1_common_drp_vio_sync_in_i; wire [31:0] gt1_common_drp_vio_async_out_i; wire [31:0] gt1_common_drp_vio_sync_out_i; wire gttxreset_i; wire gtrxreset_i; wire mux_sel_i; wire user_tx_reset_i; wire user_rx_reset_i; wire tx_vio_clk_i; wire tx_vio_clk_mux_out_i; wire rx_vio_ila_clk_i; wire rx_vio_ila_clk_mux_out_i; wire cpllreset_i; wire [(80 -32)-1:0] zero_vector_rx_80 ; wire [(8 -4)-1:0] zero_vector_rx_8 ; wire [79:0] gt0_rxdata_ila ; wire [1:0] gt0_rxdatavalid_ila; wire [7:0] gt0_rxcharisk_ila ; wire gt0_txmmcm_lock_ila ; wire gt0_rxmmcm_lock_ila ; wire gt0_rxresetdone_ila ; wire gt0_txresetdone_ila ; wire [79:0] gt1_rxdata_ila ; wire [1:0] gt1_rxdatavalid_ila; wire [7:0] gt1_rxcharisk_ila ; wire gt1_txmmcm_lock_ila ; wire gt1_rxmmcm_lock_ila ; wire gt1_rxresetdone_ila ; wire gt1_txresetdone_ila ;//**************************** Main Body of Code ******************************* // Static signal Assigments assign tied_to_ground_i = 1'b0; assign tied_to_ground_vec_i = 64'h0000000000000000; assign tied_to_vcc_i = 1'b1; assign tied_to_vcc_vec_i = 8'hff; assign zero_vector_rx_80 = 0; assign zero_vector_rx_8 = 0; assign q1_clk1_refclk_i = 1'b0; //------------------------------USERINTERFACE---------------------------//-------------channel0--------------------- assign user_rx0_clk = gt0_rxusrclk2_i; assign user_rx0_data = gt0_rxdata_i; assign user_rx0_kdata = gt0_rxcharisk_i; assign user_rx0_link = gt0_rxfsmresetdone_i; assign user_tx0_clk = gt0_txusrclk2_i; assign gt0_txdata_i = user_tx0_data; assign gt0_txcharisk_i = user_tx0_kdata; assign user_tx0_link = gt0_txfsmresetdone_i; //-------------channel1--------------------- assign user_rx1_clk = gt1_rxusrclk2_i; assign user_rx1_data = gt1_rxdata_i; assign user_rx1_kdata = gt1_rxcharisk_i; assign user_rx1_link = gt1_rxfsmresetdone_i; assign user_tx1_clk = gt1_txusrclk2_i; assign gt1_txdata_i = user_tx1_data; assign gt1_txcharisk_i = user_tx1_kdata; assign user_tx1_link = gt1_txfsmresetdone_i; //***********************************************************************////////---------------------------The GT Wrapper----------------------------////////***********************************************************************////Use the instantiation template in the example directory to add the GT wrapper to your design. //In this example, the wrapper is wired up for basic operation with a frame generator and frame //checker. The GTs will reset, then attempt to align and transmit data. If channel bonding is //enabled, bonding should occur after alignment. //While connecting the GT TX/RX Reset ports below, please add a delay of //minimum 500ns as mentioned in AR 43482. gtx_aurora_x2_support#( .EXAMPLE_SIM_GTRESET_SPEEDUP (EXAMPLE_SIM_GTRESET_SPEEDUP), .STABLE_CLOCK_PERIOD(STABLE_CLOCK_PERIOD) ) gtx_aurora_x2_support_i ( .soft_reset_tx_in (soft_rst_tx), .soft_reset_rx_in(soft_rst_rx), .dont_reset_on_data_error_in(tied_to_ground_i), .q1_clk1_gtrefclk_pad_n_in(Q1_CLK1_GTREFCLK_PAD_N_IN), .q1_clk1_gtrefclk_pad_p_in(Q1_CLK1_GTREFCLK_PAD_P_IN), .gt0_tx_fsm_reset_done_out(gt0_txfsmresetdone_i), .gt0_rx_fsm_reset_done_out(gt0_rxfsmresetdone_i), .gt0_data_valid_in('b1), .gt1_tx_fsm_reset_done_out(gt1_txfsmresetdone_i), .gt1_rx_fsm_reset_done_out(gt1_rxfsmresetdone_i), .gt1_data_valid_in('b1), .gt0_txusrclk_out(gt0_txusrclk_i), .gt0_txusrclk2_out(gt0_txusrclk2_i), .gt0_rxusrclk_out(gt0_rxusrclk_i), .gt0_rxusrclk2_out(gt0_rxusrclk2_i), .gt1_txusrclk_out(gt1_txusrclk_i), .gt1_txusrclk2_out(gt1_txusrclk2_i), .gt1_rxusrclk_out(gt1_rxusrclk_i), .gt1_rxusrclk2_out(gt1_rxusrclk2_i), //_____________________________________________________________________//_____________________________________________________________________//GT0(X1Y5)//-------------------------------CPLL Ports-------------------------------.gt0_cpllfbclklost_out(gt0_cpllfbclklost_i), .gt0_cplllock_out(gt0_cplllock_i), .gt0_cpllreset_in(tied_to_ground_i), //--------------------------Channel - DRP Ports --------------------------.gt0_drpaddr_in(gt0_drpaddr_i), .gt0_drpdi_in(gt0_drpdi_i), .gt0_drpdo_out(gt0_drpdo_i), .gt0_drpen_in(gt0_drpen_i), .gt0_drprdy_out(gt0_drprdy_i), .gt0_drpwe_in(gt0_drpwe_i), //-------------------------Digital Monitor Ports--------------------------.gt0_dmonitorout_out(gt0_dmonitorout_i), //-----------------------------Loopback Ports-----------------------------.gt0_loopback_in(gt_loopback), //----------------------------Power-Down Ports----------------------------.gt0_rxpd_in(gt0_rxpd_i), .gt0_txpd_in(gt0_txpd_i), //-------------------RX Initialization and Reset Ports--------------------.gt0_eyescanreset_in(tied_to_ground_i), .gt0_rxuserrdy_in(tied_to_vcc_i), //------------------------RX Margin Analysis Ports------------------------.gt0_eyescandataerror_out(gt0_eyescandataerror_i), .gt0_eyescantrigger_in(tied_to_ground_i), //-----------------------Receive Ports - CDR Ports------------------------.gt0_rxcdrhold_in(gt0_rxcdrhold_i), .gt0_rxcdrovrden_in(tied_to_ground_i), //-----------------Receive Ports - Clock Correction Ports-----------------.gt0_rxclkcorcnt_out(gt0_rxclkcorcnt_i), //----------------Receive Ports - FPGA RX interface Ports-----------------.gt0_rxdata_out(gt0_rxdata_i), //-----------------Receive Ports - Pattern Checker Ports------------------.gt0_rxprbserr_out(gt0_rxprbserr_i), .gt0_rxprbssel_in(gt0_rxprbssel_i), //-----------------Receive Ports - Pattern Checker ports------------------.gt0_rxprbscntreset_in(gt0_rxprbscntreset_i), //----------------Receive Ports - RX 8B/10B Decoder Ports-----------------.gt0_rxdisperr_out(gt0_rxdisperr_i), .gt0_rxnotintable_out(gt0_rxnotintable_i), //-------------------------Receive Ports - RX AFE-------------------------.gt0_gtxrxp_in(RXP_IN[0]), //----------------------Receive Ports - RX AFE Ports----------------------.gt0_gtxrxn_in(RXN_IN[0]), //-----------------Receive Ports - RX Buffer Bypass Ports-----------------.gt0_rxbufreset_in(gt0_rxbufreset_i), .gt0_rxbufstatus_out(gt0_rxbufstatus_i), //------------Receive Ports - RX Byte and Word Alignment Ports------------.gt0_rxbyteisaligned_out(gt0_rxbyteisaligned_i), .gt0_rxbyterealign_out(gt0_rxbyterealign_i), .gt0_rxcommadet_out(gt0_rxcommadet_i), .gt0_rxmcommaalignen_in('b1), .gt0_rxpcommaalignen_in('b1), //-------------------Receive Ports - RX Equalizer Ports-------------------.gt0_rxdfelpmreset_in(tied_to_ground_i), .gt0_rxmonitorout_out(gt0_rxmonitorout_i), .gt0_rxmonitorsel_in(2'b00), //-------------Receive Ports - RX Fabric Output Control Ports-------------.gt0_rxoutclkfabric_out(gt0_rxoutclkfabric_i), //-----------Receive Ports - RX Initialization and Reset Ports------------.gt0_gtrxreset_in(tied_to_ground_i), .gt0_rxpcsreset_in(tied_to_ground_i), .gt0_rxpmareset_in(gt0_rxpmareset_i), //----------------Receive Ports - RX Margin Analysis ports----------------.gt0_rxlpmen_in(gt0_rxlpmen_i), //---------------Receive Ports - RX Polarity Control Ports----------------.gt0_rxpolarity_in(gt0_rxpolarity_i), //-----------------Receive Ports - RX8B/10B Decoder Ports-----------------.gt0_rxchariscomma_out(gt0_rxchariscomma_i), .gt0_rxcharisk_out(gt0_rxcharisk_i), //------------Receive Ports -RX Initialization and Reset Ports------------.gt0_rxresetdone_out(gt0_rxresetdone_i), //----------------------TX Configurable Driver Ports----------------------.gt0_txpostcursor_in(gt0_txpostcursor_i), .gt0_txprecursor_in(gt0_txprecursor_i), //-------------------TX Initialization and Reset Ports--------------------.gt0_gttxreset_in(tied_to_ground_i), .gt0_txuserrdy_in(tied_to_vcc_i), //--------------Transmit Ports - 8b10b Encoder Control Ports--------------.gt0_txchardispmode_in(gt0_txchardispmode_i), .gt0_txchardispval_in(gt0_txchardispval_i), //----------------Transmit Ports - Pattern Generator Ports----------------.gt0_txprbsforceerr_in(gt0_txprbsforceerr_i), //--------------------Transmit Ports - TX Buffer Ports--------------------.gt0_txbufstatus_out(gt0_txbufstatus_i), //-------------Transmit Ports - TX Configurable Driver Ports--------------.gt0_txdiffctrl_in(gt0_txdiffctrl_i), .gt0_txmaincursor_in(7'b0000000), //----------------Transmit Ports - TX Data Path interface-----------------.gt0_txdata_in(gt0_txdata_i), //--------------Transmit Ports - TX Driver and OOB signaling--------------.gt0_gtxtxn_out(TXN_OUT[0]), .gt0_gtxtxp_out(TXP_OUT[0]), //---------Transmit Ports - TX Fabric Clock Output Control Ports----------.gt0_txoutclkfabric_out(gt0_txoutclkfabric_i), .gt0_txoutclkpcs_out(gt0_txoutclkpcs_i), //-------------------Transmit Ports - TX Gearbox Ports--------------------.gt0_txcharisk_in(gt0_txcharisk_i), //-----------Transmit Ports - TX Initialization and Reset Ports-----------.gt0_txpcsreset_in(tied_to_ground_i), .gt0_txpmareset_in(tied_to_ground_i), .gt0_txresetdone_out(gt0_txresetdone_i), //---------------Transmit Ports - TX Polarity Control Ports---------------.gt0_txpolarity_in(gt0_txpolarity_i), //----------------Transmit Ports - pattern Generator Ports----------------.gt0_txprbssel_in(gt0_txprbssel_i), //_____________________________________________________________________//_____________________________________________________________________//GT1(X1Y6)//-------------------------------CPLL Ports-------------------------------.gt1_cpllfbclklost_out(gt1_cpllfbclklost_i), .gt1_cplllock_out(gt1_cplllock_i), .gt1_cpllreset_in(tied_to_ground_i), //--------------------------Channel - DRP Ports --------------------------.gt1_drpaddr_in(gt1_drpaddr_i), .gt1_drpdi_in(gt1_drpdi_i), .gt1_drpdo_out(gt1_drpdo_i), .gt1_drpen_in(gt1_drpen_i), .gt1_drprdy_out(gt1_drprdy_i), .gt1_drpwe_in(gt1_drpwe_i), //-------------------------Digital Monitor Ports--------------------------.gt1_dmonitorout_out(gt1_dmonitorout_i), //-----------------------------Loopback Ports-----------------------------.gt1_loopback_in(gt1_loopback_i), //----------------------------Power-Down Ports----------------------------.gt1_rxpd_in(gt1_rxpd_i), .gt1_txpd_in(gt1_txpd_i), //-------------------RX Initialization and Reset Ports--------------------.gt1_eyescanreset_in(tied_to_ground_i), .gt1_rxuserrdy_in(tied_to_vcc_i), //------------------------RX Margin Analysis Ports------------------------.gt1_eyescandataerror_out(gt1_eyescandataerror_i), .gt1_eyescantrigger_in(tied_to_ground_i), //-----------------------Receive Ports - CDR Ports------------------------.gt1_rxcdrhold_in(gt1_rxcdrhold_i), .gt1_rxcdrovrden_in(tied_to_ground_i), //-----------------Receive Ports - Clock Correction Ports-----------------.gt1_rxclkcorcnt_out(gt1_rxclkcorcnt_i), //----------------Receive Ports - FPGA RX interface Ports-----------------.gt1_rxdata_out(gt1_rxdata_i), //-----------------Receive Ports - Pattern Checker Ports------------------.gt1_rxprbserr_out(gt1_rxprbserr_i), .gt1_rxprbssel_in(gt1_rxprbssel_i), //-----------------Receive Ports - Pattern Checker ports------------------.gt1_rxprbscntreset_in(gt1_rxprbscntreset_i), //----------------Receive Ports - RX 8B/10B Decoder Ports-----------------.gt1_rxdisperr_out(gt1_rxdisperr_i), .gt1_rxnotintable_out(gt1_rxnotintable_i), //-------------------------Receive Ports - RX AFE-------------------------.gt1_gtxrxp_in(RXP_IN[1]), //----------------------Receive Ports - RX AFE Ports----------------------.gt1_gtxrxn_in(RXN_IN[1]), //-----------------Receive Ports - RX Buffer Bypass Ports-----------------.gt1_rxbufreset_in(gt1_rxbufreset_i), .gt1_rxbufstatus_out(gt1_rxbufstatus_i), //------------Receive Ports - RX Byte and Word Alignment Ports------------.gt1_rxbyteisaligned_out(gt1_rxbyteisaligned_i), .gt1_rxbyterealign_out(gt1_rxbyterealign_i), .gt1_rxcommadet_out(gt1_rxcommadet_i), .gt1_rxmcommaalignen_in('b1), .gt1_rxpcommaalignen_in('b1), //-------------------Receive Ports - RX Equalizer Ports-------------------.gt1_rxdfelpmreset_in(tied_to_ground_i), .gt1_rxmonitorout_out(gt1_rxmonitorout_i), .gt1_rxmonitorsel_in(2'b00), //-------------Receive Ports - RX Fabric Output Control Ports-------------.gt1_rxoutclkfabric_out(gt1_rxoutclkfabric_i), //-----------Receive Ports - RX Initialization and Reset Ports------------.gt1_gtrxreset_in(tied_to_ground_i), .gt1_rxpcsreset_in(tied_to_ground_i), .gt1_rxpmareset_in(gt1_rxpmareset_i), //----------------Receive Ports - RX Margin Analysis ports----------------.gt1_rxlpmen_in(gt1_rxlpmen_i), //---------------Receive Ports - RX Polarity Control Ports----------------.gt1_rxpolarity_in(gt1_rxpolarity_i), //-----------------Receive Ports - RX8B/10B Decoder Ports-----------------.gt1_rxchariscomma_out(gt1_rxchariscomma_i), .gt1_rxcharisk_out(gt1_rxcharisk_i), //------------Receive Ports -RX Initialization and Reset Ports------------.gt1_rxresetdone_out(gt1_rxresetdone_i), //----------------------TX Configurable Driver Ports----------------------.gt1_txpostcursor_in(gt1_txpostcursor_i), .gt1_txprecursor_in(gt1_txprecursor_i), //-------------------TX Initialization and Reset Ports--------------------.gt1_gttxreset_in(tied_to_ground_i), .gt1_txuserrdy_in(tied_to_vcc_i), //--------------Transmit Ports - 8b10b Encoder Control Ports--------------.gt1_txchardispmode_in(gt1_txchardispmode_i), .gt1_txchardispval_in(gt1_txchardispval_i), //----------------Transmit Ports - Pattern Generator Ports----------------.gt1_txprbsforceerr_in(gt1_txprbsforceerr_i), //--------------------Transmit Ports - TX Buffer Ports--------------------.gt1_txbufstatus_out(gt1_txbufstatus_i), //-------------Transmit Ports - TX Configurable Driver Ports--------------.gt1_txdiffctrl_in(gt1_txdiffctrl_i), .gt1_txmaincursor_in(7'b0000000), //----------------Transmit Ports - TX Data Path interface-----------------.gt1_txdata_in(gt1_txdata_i), //--------------Transmit Ports - TX Driver and OOB signaling--------------.gt1_gtxtxn_out(TXN_OUT[1]), .gt1_gtxtxp_out(TXP_OUT[1]), //---------Transmit Ports - TX Fabric Clock Output Control Ports----------.gt1_txoutclkfabric_out(gt1_txoutclkfabric_i), .gt1_txoutclkpcs_out(gt1_txoutclkpcs_i), //-------------------Transmit Ports - TX Gearbox Ports--------------------.gt1_txcharisk_in(gt1_txcharisk_i), //-----------Transmit Ports - TX Initialization and Reset Ports-----------.gt1_txpcsreset_in(tied_to_ground_i), .gt1_txpmareset_in(tied_to_ground_i), .gt1_txresetdone_out(gt1_txresetdone_i), //---------------Transmit Ports - TX Polarity Control Ports---------------.gt1_txpolarity_in(gt1_txpolarity_i), //----------------Transmit Ports - pattern Generator Ports----------------.gt1_txprbssel_in(gt1_txprbssel_i), //____________________________COMMONPORTS________________________________ .gt0_qplloutclk_out(), .gt0_qplloutrefclk_out(), .sysclk_in(DRP_CLK_IN) ); //IBUFDS IBUFDS_DRP_CLK //( // .I (DRP_CLK_IN_P), //.IB(DRP_CLK_IN_N), //.O(DRPCLK_IN)// ); //BUFG DRP_CLK_BUFG //( // .I (DRPCLK_IN), //.O(drpclk_in_i)//); //***********************************************************************////////---------------------------User Module Resets-------------------------////////***********************************************************************////All the User Modules i.e. FRAME_GEN, FRAME_CHECK and the sync modules //are held in reset till the RESETDONE goes high. //The RESETDONE is registered a couple of times on *USRCLK2 and connected //to the reset of the modules always @(posedge gt0_rxusrclk2_i or negedge gt0_rxresetdone_i) begin if(!gt0_rxresetdone_i) begin gt0_rxresetdone_r <= `DLY 1'b0; gt0_rxresetdone_r2 <= `DLY 1'b0; gt0_rxresetdone_r3 <= `DLY 1'b0; end else begin gt0_rxresetdone_r <= `DLY gt0_rxresetdone_i; gt0_rxresetdone_r2 <= `DLY gt0_rxresetdone_r; gt0_rxresetdone_r3 <= `DLY gt0_rxresetdone_r2; end end always @(posedge gt0_txusrclk2_i or negedge gt0_txfsmresetdone_i) begin if(!gt0_txfsmresetdone_i) begin gt0_txfsmresetdone_r <= `DLY 1'b0; gt0_txfsmresetdone_r2 <= `DLY 1'b0; end else begin gt0_txfsmresetdone_r <= `DLY gt0_txfsmresetdone_i; gt0_txfsmresetdone_r2 <= `DLY gt0_txfsmresetdone_r; end end always @(posedge gt1_rxusrclk2_i or negedge gt1_rxresetdone_i) begin if(!gt1_rxresetdone_i) begin gt1_rxresetdone_r <= `DLY 1'b0; gt1_rxresetdone_r2 <= `DLY 1'b0; gt1_rxresetdone_r3 <= `DLY 1'b0; end else begin gt1_rxresetdone_r <= `DLY gt1_rxresetdone_i; gt1_rxresetdone_r2 <= `DLY gt1_rxresetdone_r; gt1_rxresetdone_r3 <= `DLY gt1_rxresetdone_r2; end end always @(posedge gt1_txusrclk2_i or negedge gt1_txfsmresetdone_i) begin if(!gt1_txfsmresetdone_i) begin gt1_txfsmresetdone_r <= `DLY 1'b0; gt1_txfsmresetdone_r2 <= `DLY 1'b0; end else begin gt1_txfsmresetdone_r <= `DLY gt1_txfsmresetdone_i; gt1_txfsmresetdone_r2 <= `DLY gt1_txfsmresetdone_r; end end //***********************************************************************////////------------------------ Frame Generators ---------------------------////////***********************************************************************//// The example design uses Block RAM based frame generators to provide test // data to the GTs for transmission. By default the frame generators are // loaded with an incrementing data sequence that includes commas/alignment // characters for alignment. If your protocol uses channel bonding, the // frame generator will also be preloaded with a channel bonding sequence. // You can modify the data transmitted by changing the INIT values of the frame // generator in this file. Pay careful attention to bit order and the spacing // of your control and alignment characters. // gtx_aurora_x2_GT_FRAME_GEN #//( // .WORDS_IN_BRAM(EXAMPLE_WORDS_IN_BRAM)// ) // gt0_frame_gen //( // // User Interface // .TX_DATA_OUT ({gt0_txdata_float_i,gt0_txdata_i,gt0_txdata_float16_i}), //.TXCTRL_OUT({gt0_txcharisk_float_i,gt0_txcharisk_i}), //// System Interface //.USER_CLK(gt0_txusrclk2_i), //.SYSTEM_RESET(gt0_tx_system_reset_c)// ); // gtx_aurora_x2_GT_FRAME_GEN #//( // .WORDS_IN_BRAM(EXAMPLE_WORDS_IN_BRAM)// ) // gt1_frame_gen //( // // User Interface // .TX_DATA_OUT ({gt1_txdata_float_i,gt1_txdata_i,gt1_txdata_float16_i}), //.TXCTRL_OUT({gt1_txcharisk_float_i,gt1_txcharisk_i}), //// System Interface //.USER_CLK(gt1_txusrclk2_i), //.SYSTEM_RESET(gt1_tx_system_reset_c)// ); //***********************************************************************////////------------------------ Frame Checkers -----------------------------////////***********************************************************************//// The example design uses Block RAM based frame checkers to verify incoming // data. By default the frame generators are loaded with a data sequence that // matches the outgoing sequence of the frame generators for the TX ports. // You can modify the expected data sequence by changing the INIT values of the frame // checkers in this file. Pay careful attention to bit order and the spacing // of your control and alignment characters. // When the frame checker receives data, it attempts to synchronise to the // incoming pattern by looking for the first sequence in the pattern. Once it // finds the first sequence, it increments through the sequence, and indicates an // error whenever the next value received does not match the expected value. // assign gt0_frame_check_reset_i = (EXAMPLE_CONFIG_INDEPENDENT_LANES==0)?reset_on_data_error_i:gt0_matchn_i; // gt0_frame_check0 is always connected to the lane with the start of char // and this lane starts off the data checking on all the other lanes. The INC_IN port is tied off // assign gt0_inc_in_i = 1'b0;// gtx_aurora_x2_GT_FRAME_CHECK #//( // .RX_DATA_WIDTH ( 32 ),//.RXCTRL_WIDTH( 4 ),//.COMMA_DOUBLE( 16'h04bc ),//.WORDS_IN_BRAM(EXAMPLE_WORDS_IN_BRAM),//.START_OF_PACKET_CHAR( 32'h060504bc )// )// gt0_frame_check//( // // GT Interface // .RX_DATA_IN (gt0_rxdata_i),//.RXCTRL_IN(gt0_rxcharisk_i),//.RXENMCOMMADET_OUT(gt0_rxmcommaalignen_i),//.RXENPCOMMADET_OUT(gt0_rxpcommaalignen_i),//.RX_ENCHAN_SYNC_OUT( ),//.RX_CHANBOND_SEQ_IN(tied_to_ground_i),//// Control Interface//.INC_IN(gt0_inc_in_i),//.INC_OUT(gt0_inc_out_i),//.PATTERN_MATCHB_OUT(gt0_matchn_i),//.RESET_ON_ERROR_IN(gt0_frame_check_reset_i),//// System Interface//.USER_CLK(gt0_rxusrclk2_i),//.SYSTEM_RESET(gt0_rx_system_reset_c),//.ERROR_COUNT_OUT(gt0_error_count_i),//.TRACK_DATA_OUT(gt0_track_data_i)// );// assign gt1_frame_check_reset_i = (EXAMPLE_CONFIG_INDEPENDENT_LANES==0)?reset_on_data_error_i:gt1_matchn_i; // in the "independent lanes" configuration, each of the lanes looks for the unique start char and // in this case, the INC_IN port is tied off. // Else, the data checking is triggered by the "master" lane // assign gt1_inc_in_i = (EXAMPLE_CONFIG_INDEPENDENT_LANES==0)?gt0_inc_out_i:1'b0;// gtx_aurora_x2_GT_FRAME_CHECK #//( // .RX_DATA_WIDTH ( 32 ),//.RXCTRL_WIDTH( 4 ),//.COMMA_DOUBLE( 16'h04bc ),//.WORDS_IN_BRAM(EXAMPLE_WORDS_IN_BRAM),//.START_OF_PACKET_CHAR( 32'h060504bc )// )// gt1_frame_check//( // // GT Interface // .RX_DATA_IN (gt1_rxdata_i),//.RXCTRL_IN(gt1_rxcharisk_i),//.RXENMCOMMADET_OUT(gt1_rxmcommaalignen_i),//.RXENPCOMMADET_OUT(gt1_rxpcommaalignen_i),//.RX_ENCHAN_SYNC_OUT( ),//.RX_CHANBOND_SEQ_IN(tied_to_ground_i),//// Control Interface//.INC_IN(gt1_inc_in_i),//.INC_OUT(gt1_inc_out_i),//.PATTERN_MATCHB_OUT(gt1_matchn_i),//.RESET_ON_ERROR_IN(gt1_frame_check_reset_i),//// System Interface//.USER_CLK(gt1_rxusrclk2_i),//.SYSTEM_RESET(gt1_rx_system_reset_c),//.ERROR_COUNT_OUT(gt1_error_count_i),//.TRACK_DATA_OUT(gt1_track_data_i)// );// assign TRACK_DATA_OUT = track_data_out_i;// assign track_data_out_i = // gt0_track_data_i &// gt1_track_data_i ;//-------------------------------------------------------------------------------------//-------------------------Debug Signals assignment-------------------- assign gt0_rxlpmen_i = tied_to_vcc_i; assign gt1_rxlpmen_i = tied_to_vcc_i;//------------ optional Ports assignments --------------assign gt0_rxprbscntreset_i = tied_to_ground_i; assign gt0_rxprbssel_i = 0; assign gt0_loopback_i = 0; assign gt0_txdiffctrl_i = 0; assign gt0_rxbufreset_i = tied_to_ground_i; assign gt0_rxcdrhold_i = tied_to_ground_i; //------GTH/GTPassign gt0_rxdfelpmreset_i = tied_to_ground_i; assign gt0_rxpmareset_i = tied_to_ground_i; assign gt0_rxpolarity_i = tied_to_ground_i; assign gt0_rxpd_i = 0; assign gt0_txprecursor_i = 0; assign gt0_txpostcursor_i = 0; assign gt0_txchardispmode_i = 0; assign gt0_txchardispval_i = 0; assign gt0_txpolarity_i = tied_to_ground_i; assign gt0_txpd_i = 0; assign gt0_txprbsforceerr_i = tied_to_ground_i; assign gt0_txprbssel_i = 0; assign gt1_rxprbscntreset_i = tied_to_ground_i; assign gt1_rxprbssel_i = 0; assign gt1_loopback_i = 0; assign gt1_txdiffctrl_i = 0; assign gt1_rxbufreset_i = tied_to_ground_i; assign gt1_rxcdrhold_i = tied_to_ground_i; //------GTH/GTPassign gt1_rxdfelpmreset_i = tied_to_ground_i; assign gt1_rxpmareset_i = tied_to_ground_i; assign gt1_rxpolarity_i = tied_to_ground_i; assign gt1_rxpd_i = 0; assign gt1_txprecursor_i = 0; assign gt1_txpostcursor_i = 0; assign gt1_txchardispmode_i = 0; assign gt1_txchardispval_i = 0; assign gt1_txpolarity_i = tied_to_ground_i; assign gt1_txpd_i = 0; assign gt1_txprbsforceerr_i = tied_to_ground_i; assign gt1_txprbssel_i = 0;//------------------------------------------------------// assign resets for frame_gen modules assign gt0_tx_system_reset_c = !gt0_txfsmresetdone_r2; assign gt1_tx_system_reset_c = !gt1_txfsmresetdone_r2; // assign resets for frame_check modules assign gt0_rx_system_reset_c = !gt0_rxresetdone_r3; assign gt1_rx_system_reset_c = !gt1_rxresetdone_r3; assign gt0_drpaddr_i = 9'd0; assign gt0_drpdi_i = 16'd0; assign gt0_drpen_i = 1'b0; assign gt0_drpwe_i = 1'b0; assign gt1_drpaddr_i = 9'd0; assign gt1_drpdi_i = 16'd0; assign gt1_drpen_i = 1'b0; assign gt1_drpwe_i = 1'b0; assign soft_reset_i = tied_to_ground_i; endmodule
3. 在线调试
调试思路：如果没有多余的板卡，你就用ip核进行回环调试，具体看ug476手册第88页进行配置（广子：上xianyu搜麻酱就烧饼，获取xilinx全系列文档手册），近端pcs和近端pma，如果这样调试通了，那基本没问题了。
TX链路：

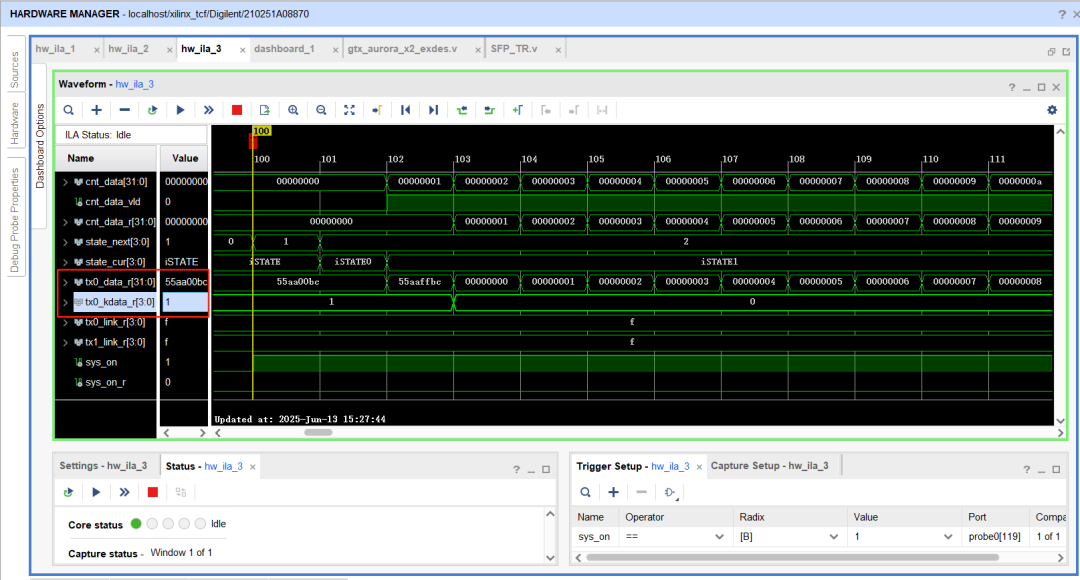

可以很清晰的看到，当我的sys_on拉高的时候，经过编码后的数据包已经有效的发送出去了
RX链路：

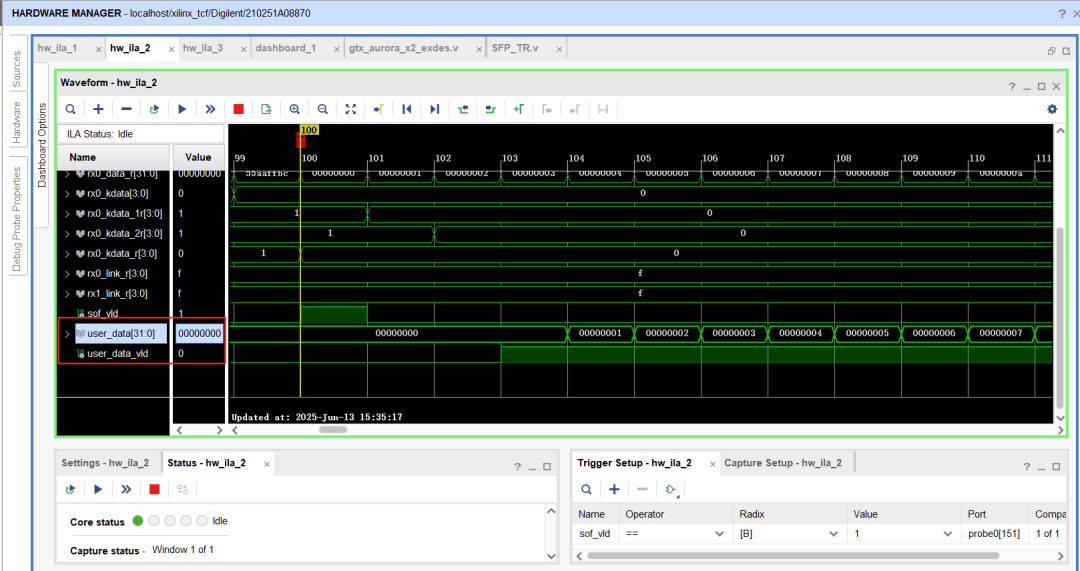

可以看到，当我的vld有效的时候，接收到的正好是发送过来的顺序数，和发送的有效数据包一致！
vio调试：

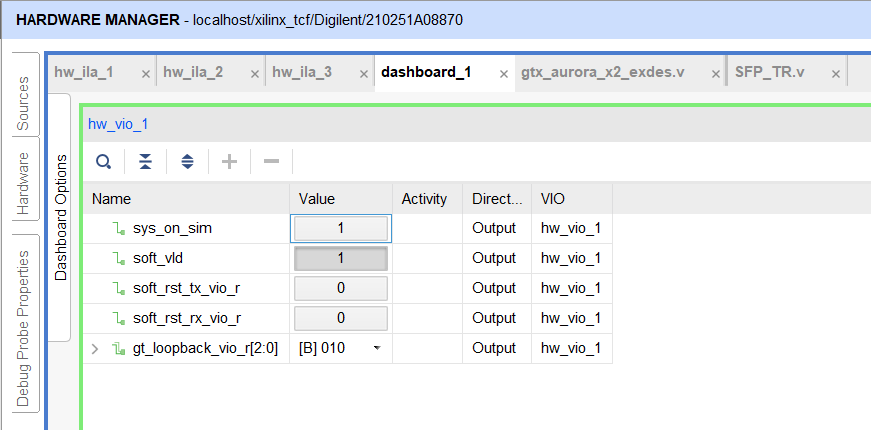

说明：
1.sys_on_sim是总的系统启动信号
2.soft_vld是控制剩余的复位GT链路信号和回环测试的信号
